Home
>>
Oldsmobile
>>
1998
>>
LSS V6-3.8L SC VIN 1
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution
>>
G202
G202

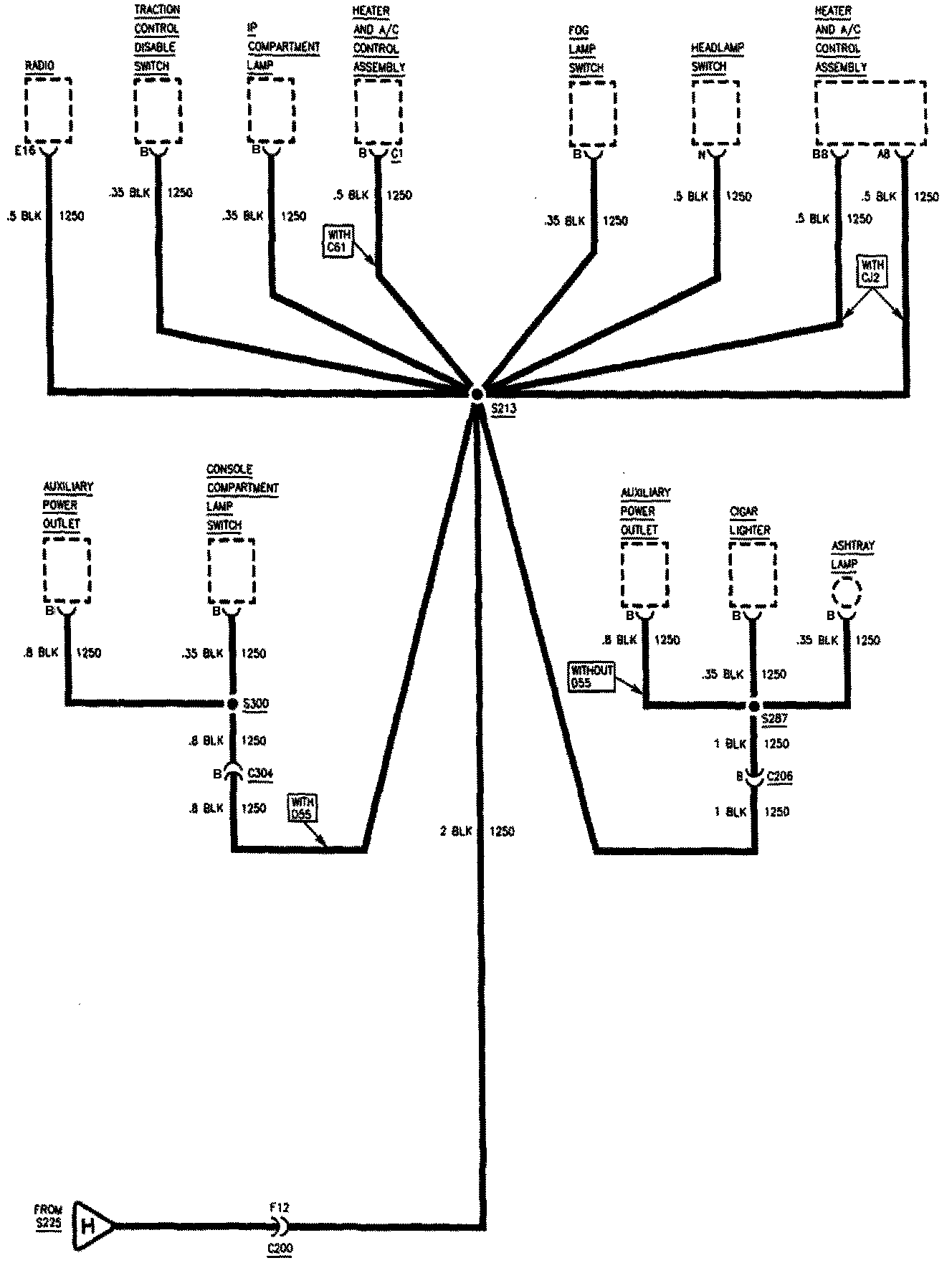

G202 (Part 1 Of 4):

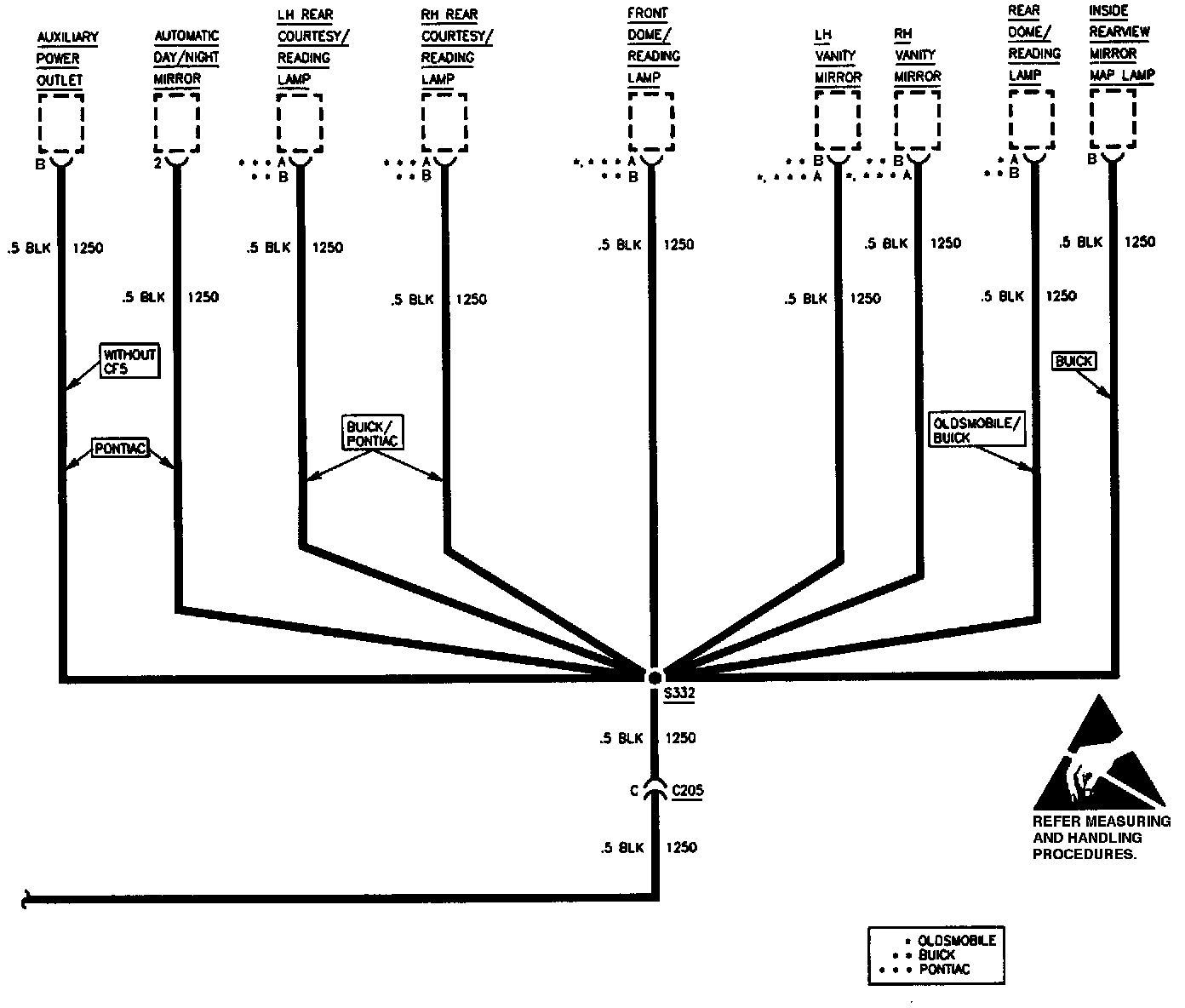

G202 (Part 2 Of 4):

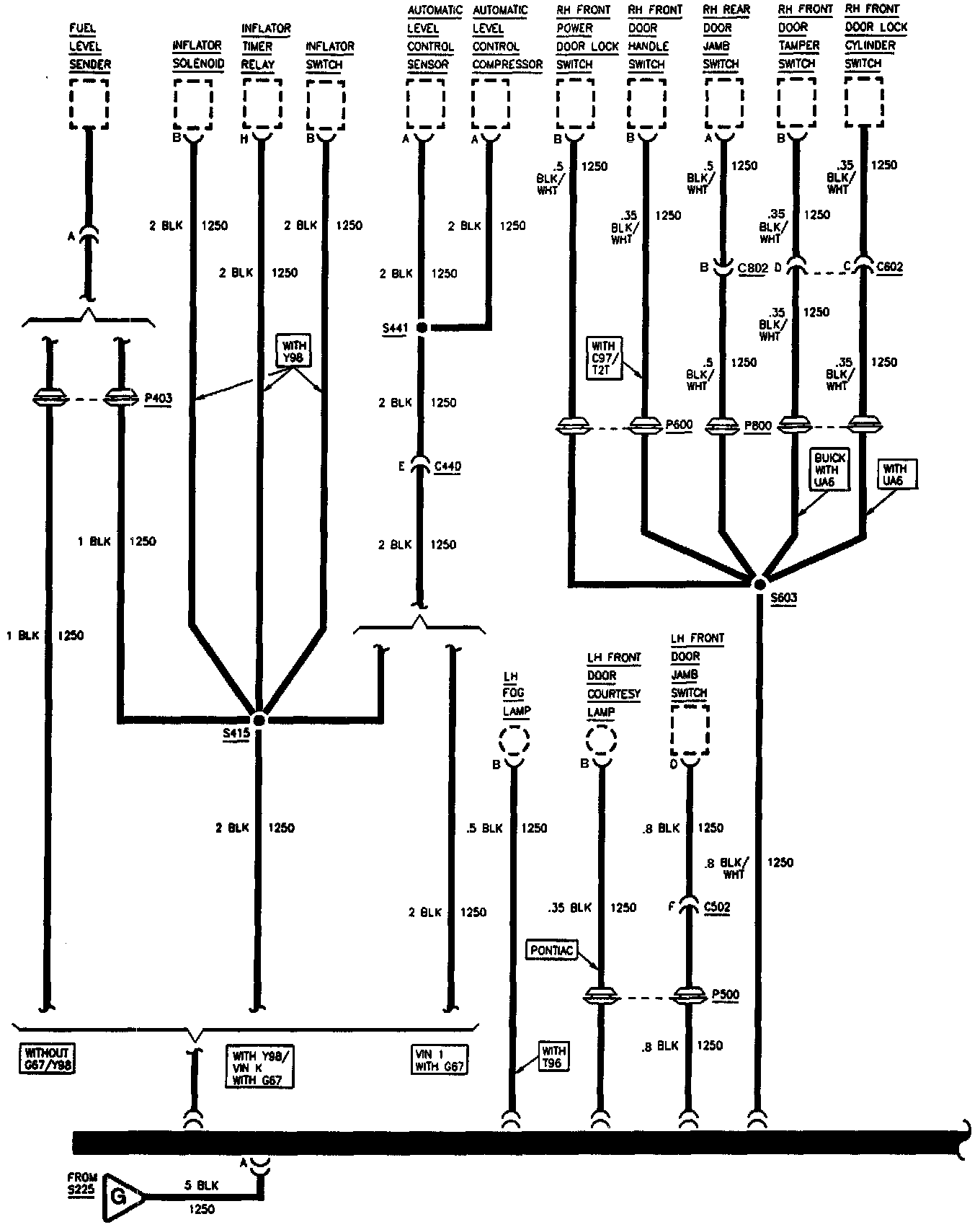

G202 (Part 3 Of 4):

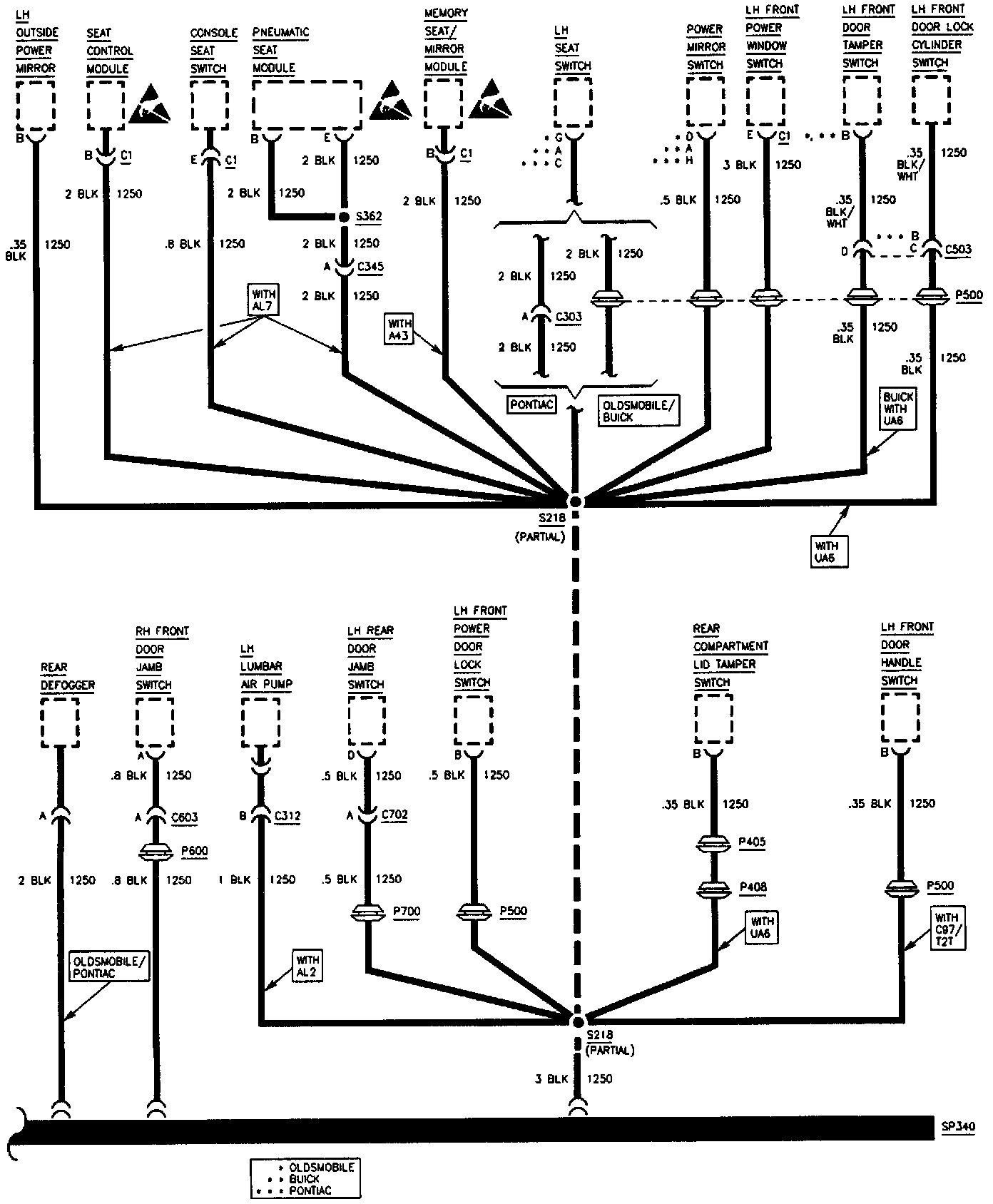

G202 (Part 4 Of 4):

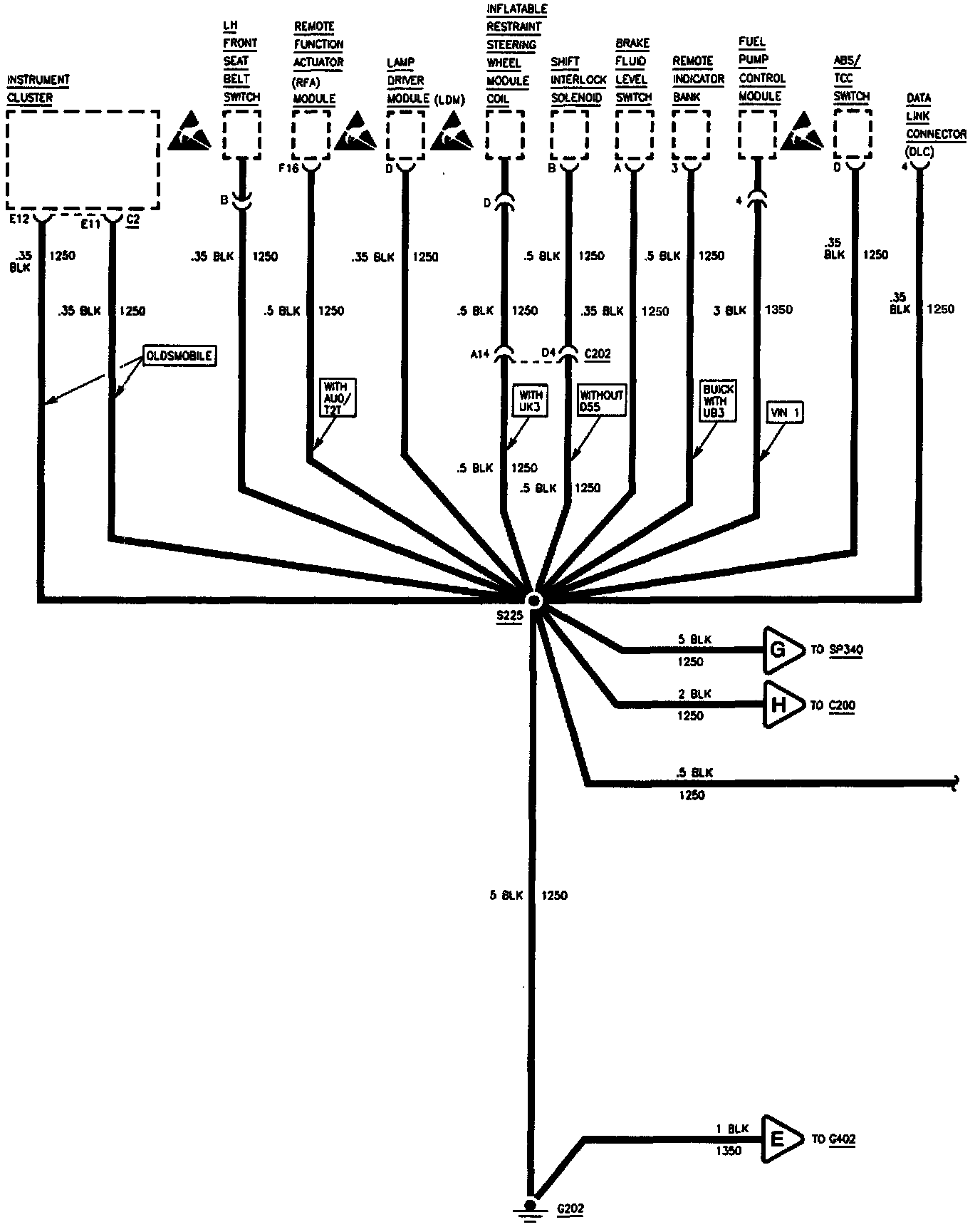

G202:
