Exhaust Manifold Replacement (Left)

REMOVAL PROCEDURE
1. Disconnect the negative battery cable.

CAUTION: Refer to Battery Disconnect Caution in Service Precautions.

2. Remove the bolts attaching the left exhaust manifold to the crossover pipe.
3. Disconnect the spark plug wires from the spark plugs.

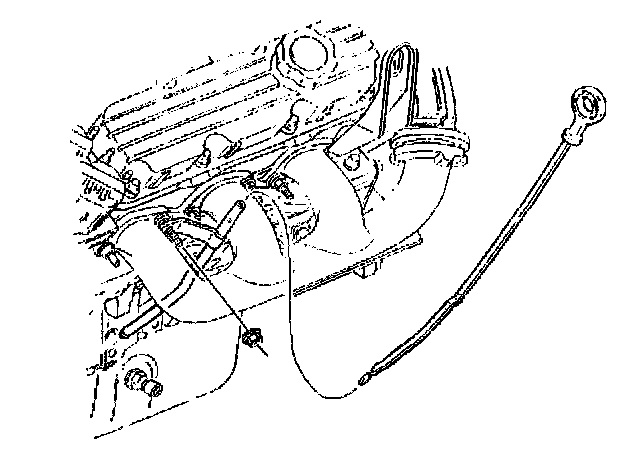

4. Remove the oil level indicator and the tube.

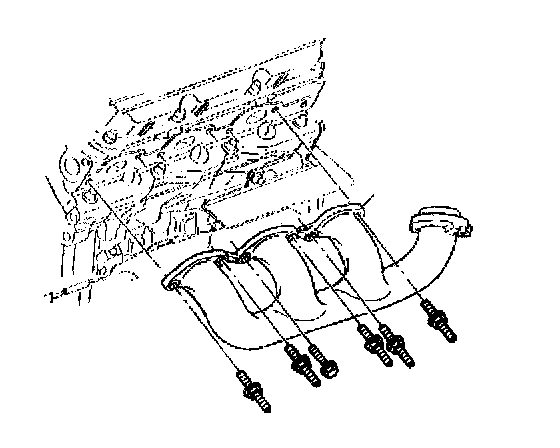

5. Remove the exhaust manifold studs and bolts.





6. Remove the exhaust manifold.

INSTALLATION PROCEDURE





1. Install the exhaust manifold to the cylinder head.
2. Install the exhaust manifold studs and bolts.
^ Tighten the studs and bolts to 30 Nm (22 ft. lbs.).

NOTICE: Refer to Fastener Notice in Service Precautions.

3. Install the oil level indicator and the tube.
4. Install the spark plug wires to the spark plugs.
5. Install the bolts attaching the left exhaust manifold to the exhaust crossover pipe.
^ Tighten the bolts to 20 Nm (15 ft. lbs.).
6. Connect the negative battery cable.
