Engine Oil Dip Stick - Dip Stick Tube: Service and Repair

REMOVAL PROCEDURE
1. Remove the negative battery cable.

CAUTION: Refer to Battery Disconnect Caution in Service Precautions.

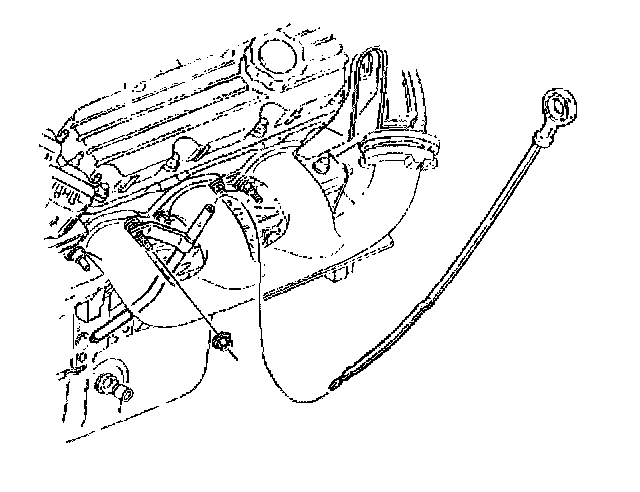

2. Loosen the nut holding the tube to the exhaust manifold. Pull upward.





3. Remove the oil level indicator and tube.

INSTALLATION PROCEDURE





1. Install the oil indicator tube assembly to the engine. Ensure that the 0-ring is in place. Ensure that the tube assembly is fully seated in the engine.
2. Slide the tube assembly under the exhaust manifold nut.
^ Tighten the nut to 19 Nm (14 ft. lbs.).

NOTICE: Refer to Fastener Notice in Service Precautions.

3. Connect the negative battery cable.
