Engine Mount Replacement

REMOVAL PROCEDURE

^ Tools Required
- J28467-360 Engine Support Fixture

1. Disconnect the negative battery cable.

CAUTION: Refer to Battery Disconnect Caution in Service Precautions.

2. Install the J28467-360.
3. For Engine Code 1, remove the ignition module. Set the module aside.
4. Remove the accessory drive belt. Refer to Drive Belt Replacement (VIN 1).
5. For Engine Code 1, remove the supercharger drive belt tensioner.
6. Remove the power steering pump. Set the power steering pump aside. Refer to Power Steering Pump Replacement in Steering and Suspension.

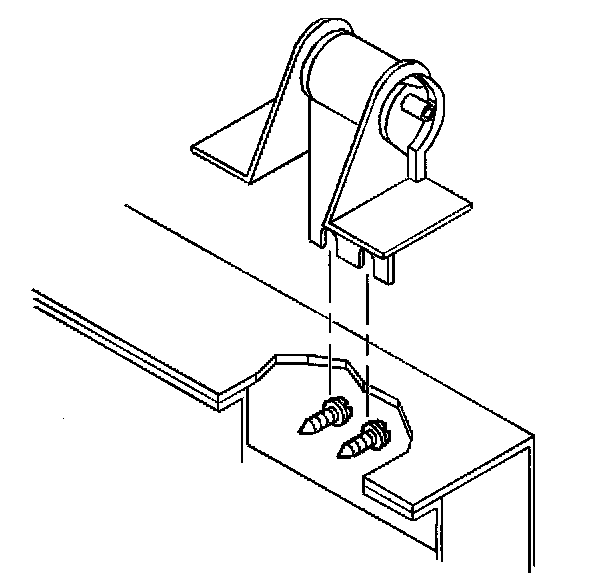

7. Remove the torque axis engine mount.
8. Remove the nuts from the engine mount bracket.
9. Remove the studs from the engine mount bracket.





10. Remove the torque axis engine mount bracket.

INSTALLATION PROCEDURE





1. Install the torque axis engine mount bracket.
2. Install the studs to the engine mount bracket.
3. Install the nuts to the engine mount bracket.
^ Tighten the upper nut to 30 Nm (22 ft. lbs.).
^ Tighten the lower nut to 70 Nm (52 ft. lbs.).

NOTICE: Refer to Fastener Notice in Service Precautions.

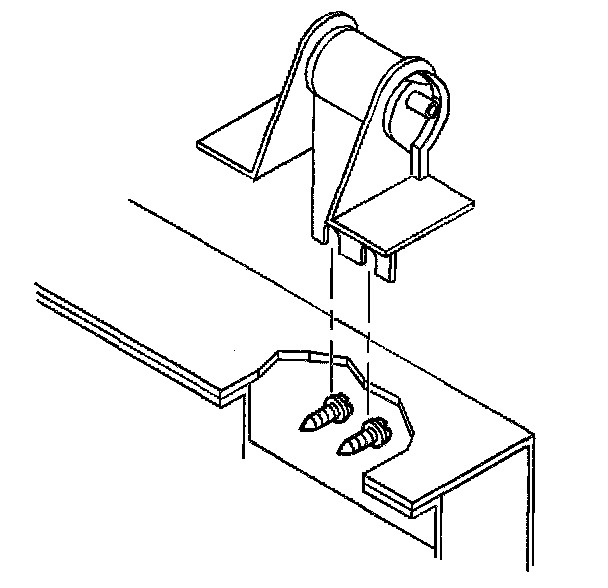

4. Install the torque axis engine mount.
5. Install the power steering pump. Refer to Power Steering Pump Replacement in Steering and Suspension.
6. For Engine Code 1, install the supercharger belt tensioner. Refer to Drive Belt Tensioner Replacement (VIN 1).
7. For Engine Code 1, install the ignition module.
8. Install the accessory drive belt. Refer to Drive Belt Replacement (VIN 1).
9. Remove the J28467-360.
10. Connect the negative battery cable.
