Valve Rocker Arm Cover Replacement - Right

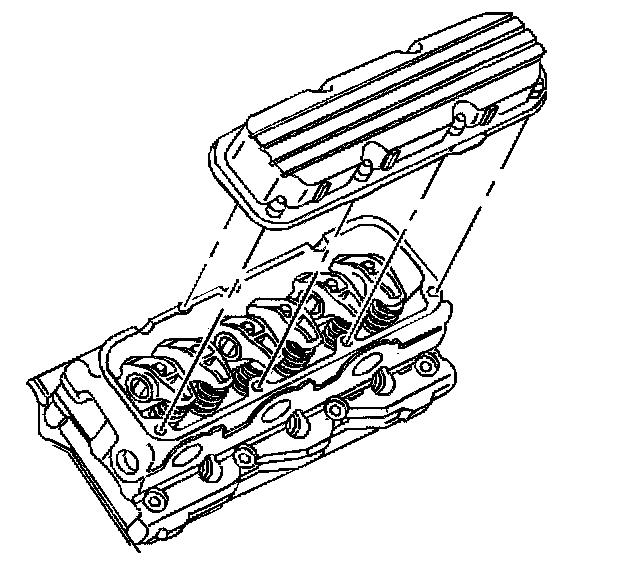

REMOVAL PROCEDURE
1. Remove the generator rear retaining brace.
2. Remove the spark plug wires.
3. Remove the rocker arm cover bolts.





4. Remove the rocker arm cover.

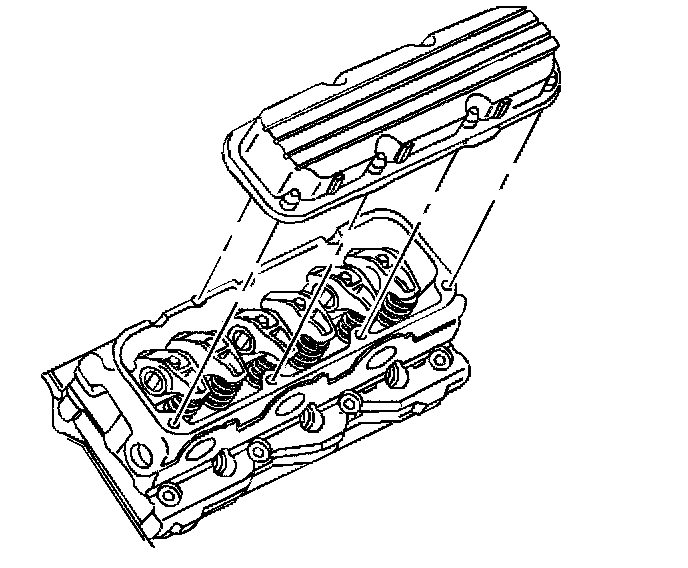

INSTALLATION PROCEDURE





1. Install the rocker arm cover.
2. Apply thread lock compound or equivalent to the bolt threads.
3. Install the rocker arm cover bolts.
^ ^ Tighten the bolts to 10 Nm (89 inch lbs.).

NOTICE: Refer to Fastener Notice in Service Precautions.

4. Connect the spark plug wires.
5. Install the generator rear retaining brace.
