Coolant Reservoir: Service and Repair
REMOVAL PROCEDURE1. Disconnect the negative battery cable.
CAUTION: Refer to Battery Disconnect Caution in Service Precautions.
2. Disconnect the positive battery cable.
3. Remove the battery.
4. Drain the coolant. Refer to Draining and Filling Cooling System.

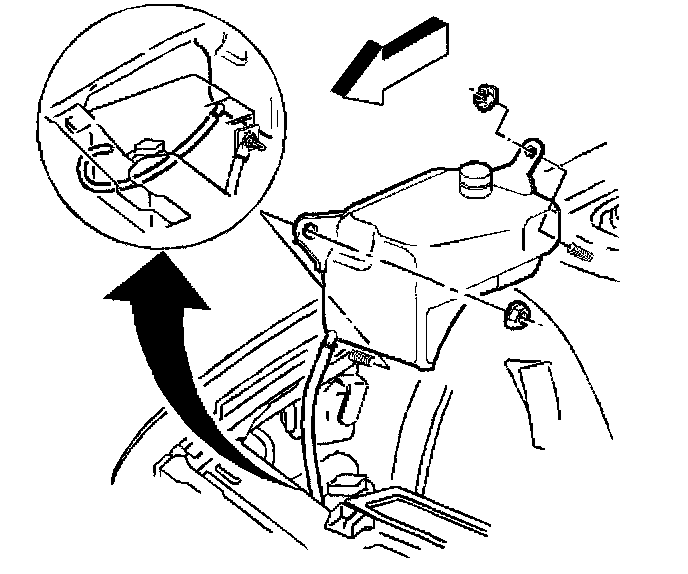

5. Remove the reservoir mounting bolts.
6. Disconnect the coolant hose.
7. Remove the coolant recovery reservoir.
INSTALLATION PROCEDURE

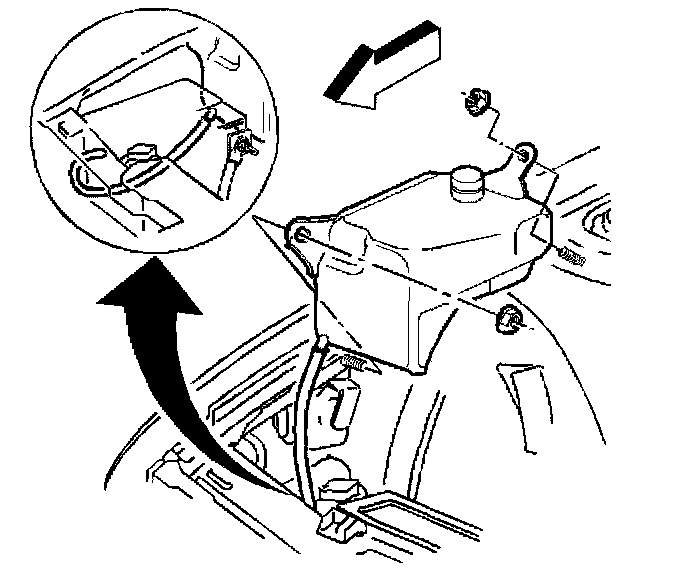

1. Connect the coolant hose to the coolant recovery reservoir.
2. Install the coolant recovery reservoir.
3. Install the mounting bolts.
^ Tighten the recovery reservoir mounting bolts to 13 Nm (10 ft. lbs.).
NOTICE: Refer to Fastener Notice in Service Precautions.
4. Install the battery.
5. Connect the positive battery cable.
6. Connect the negative battery cable.
7. Refill the cooling system. Refer to Draining and Filling Cooling System.
