Home
>>
Oldsmobile
>>
1998
>>
LSS V6-3.8L SC VIN 1
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Suspension Control ( Automatic - Electronic )
>>
Schematic and Routing Diagrams (Level Control)
Schematic and Routing Diagrams (Level Control)

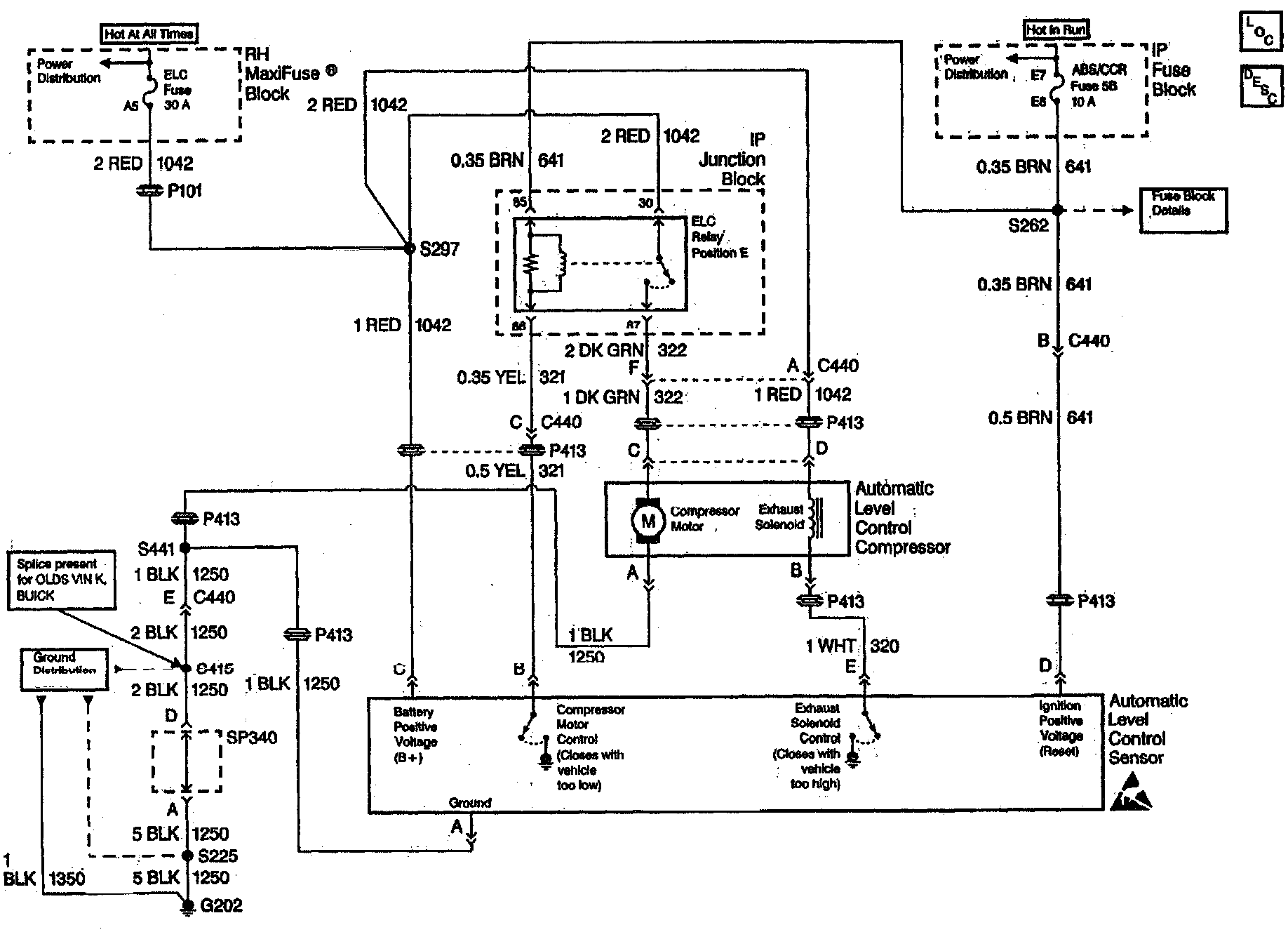

ALC Suspension Schematics:
