Home
>>
Oldsmobile
>>
1998
>>
LSS V6-3.8L SC VIN 1
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Radio, Stereo, and Compact Disc
>>
System Diagram
>>
Speaker System
>>
Speaker System (UW6)
Speaker System (UW6)

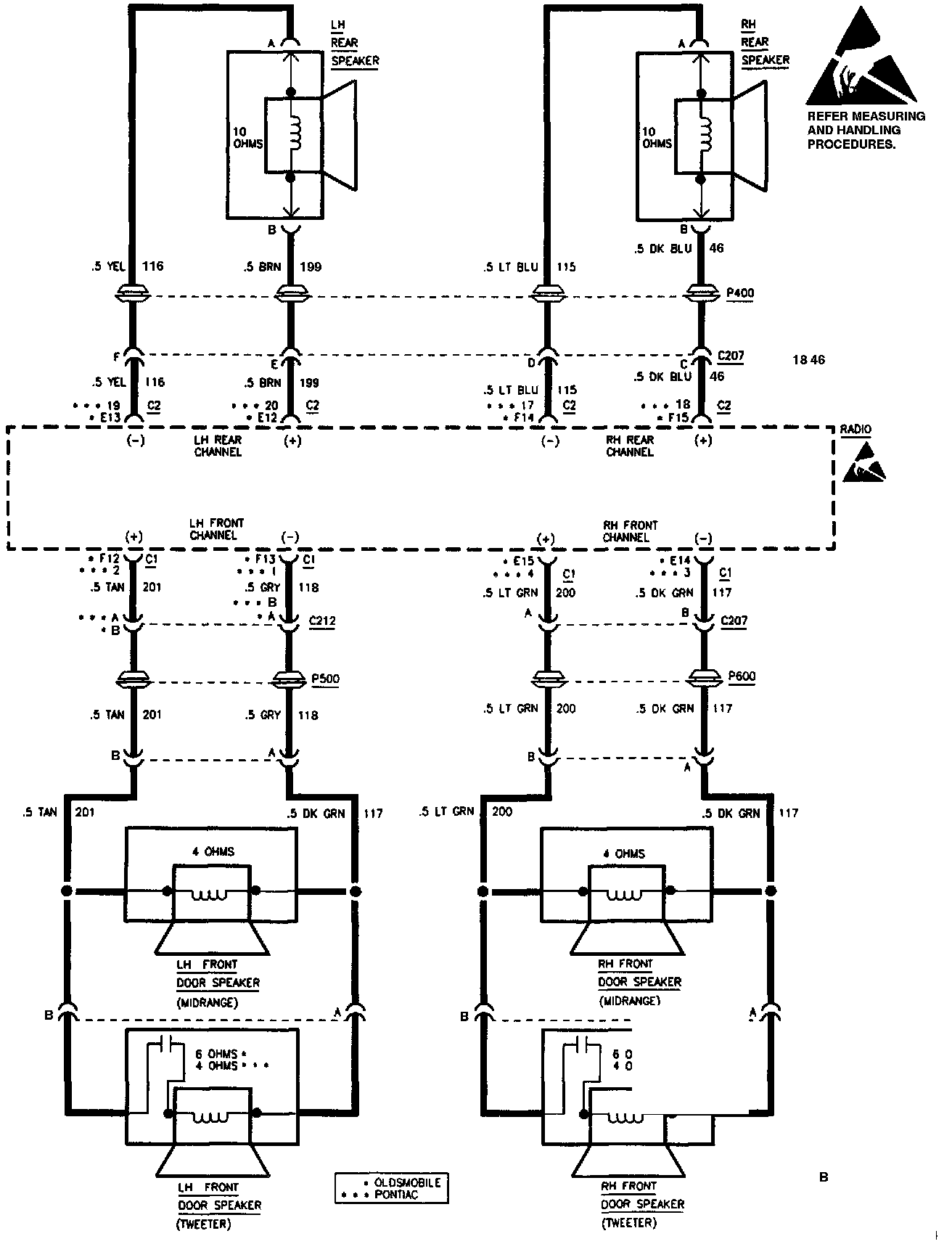

Audio Systems: Speaker System - UW6:
