Curiosii for ever!: Car repair manuals for everyone.
Home >> Oldsmobile >> 1998 >> LSS V6-3.8L SC VIN 1 >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Radio, Stereo, and Compact Disc >> System Diagram >> Radio/Audio System Schematics >> Speakers (W/UX7)

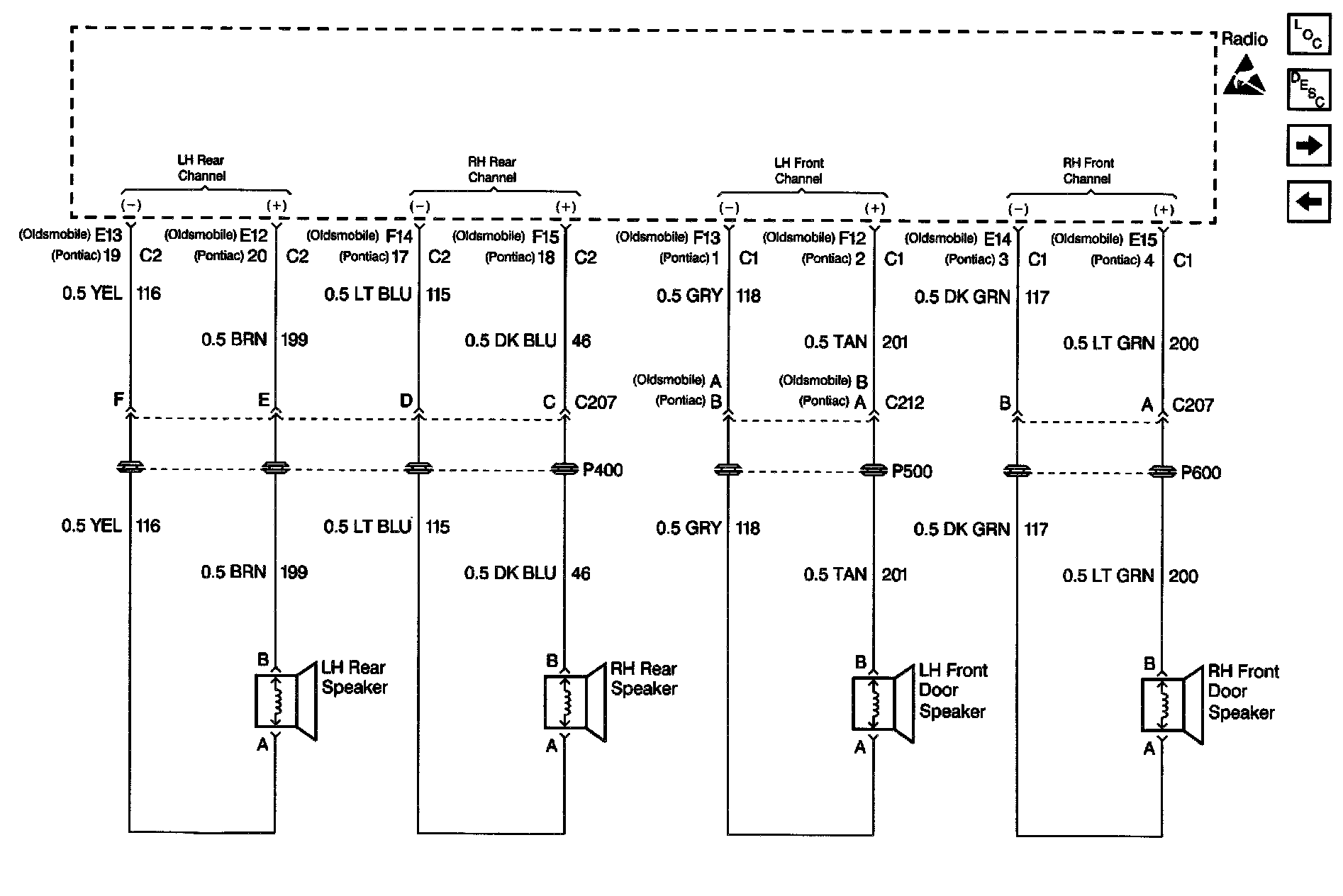

Speakers (W/UX7)

Radio/Audio System Schematics: Speakers (W/UX7):
