C101
>>
Pinout Description
Pinout Description
C101 (Part 1 Of 2):
C101 (Part 2 Of 3):

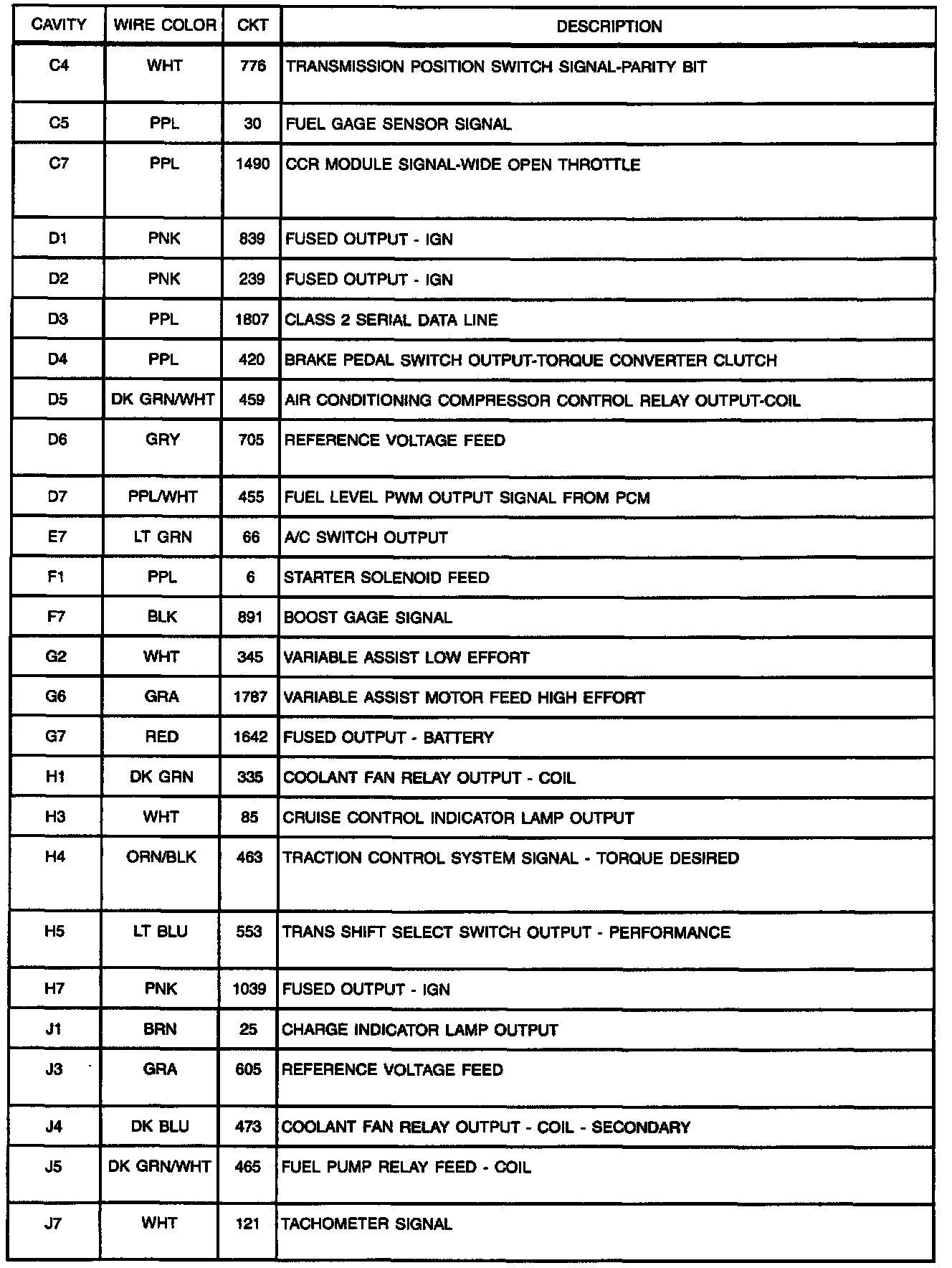

C101 (Part 3 Of 3):
