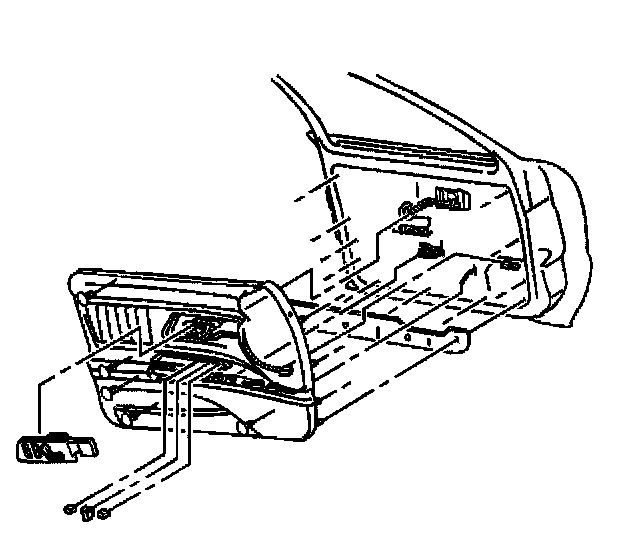

Side Front Door Trim Panel

REMOVAL PROCEDURE

TOOLS REQUIRED
J 38778 Door Trim Pad Remover.

CAUTION: Refer to Battery Disconnect Caution

1. Disconnect the negative battery cable.
2. Remove the power window switch.
3. Remove the trim panel insert.
4. Use the J 38778 in order to release the trim panel retainers between the door and the trim panel.
5. Lift upward the trim panel.
6. Disconnect the electrical connectors.
7. Remove the door trim panel.

INSTALLATION PROCEDURE
1. Align the trim panel to the door.
2. Connect the electrical connectors.
3. Install the trim panel to the door.
4. Push on the outer edges of the trim panel to secure.
5. Install the trim panel insert.
6. Install the power window switch.
7. Connect the negative battery cable.
