Bin Assembly

REMOVAL PROCEDURE

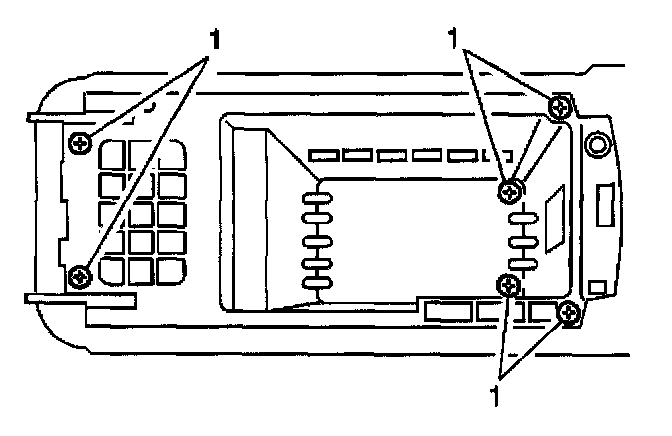

1. Remove the fasteners (1) retaining the storage bin.




2. Partially remove the storage bin.

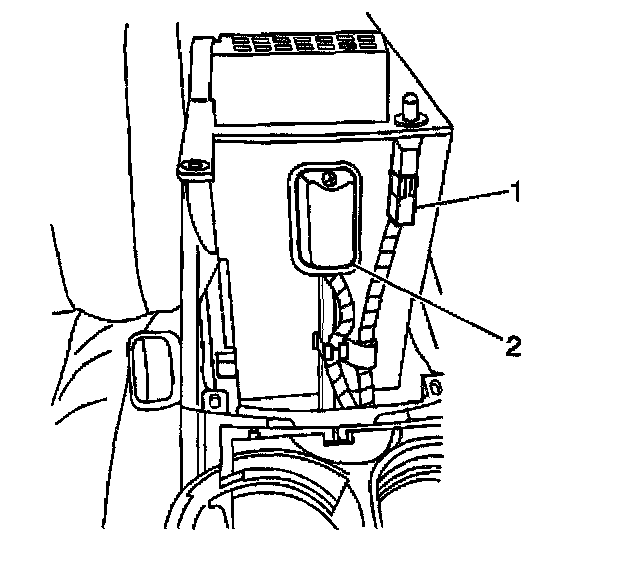

3. Disconnect the lamp switch electrical connector (1).
4. Remove the lamp assembly (2) from the storage bin.
5. Remove the storage bin.

INSTALLATION PROCEDURE




1. Partially install the storage bin.
2. Install the lamp assembly (2) to the storage bin.
3. Connect the lamp switch electrical connector (1).




4. Align the storage bin to the console.

NOTICE: Refer to Fastener Notice in Cautions and Notices.

5. Install the storage bin fasteners (1).

Tighten
Tighten the fasteners to 1.3 N.m (11 lb in).
