Hood Latch Release Cable: Service and Repair

Removal Procedure

1. Open the hood.

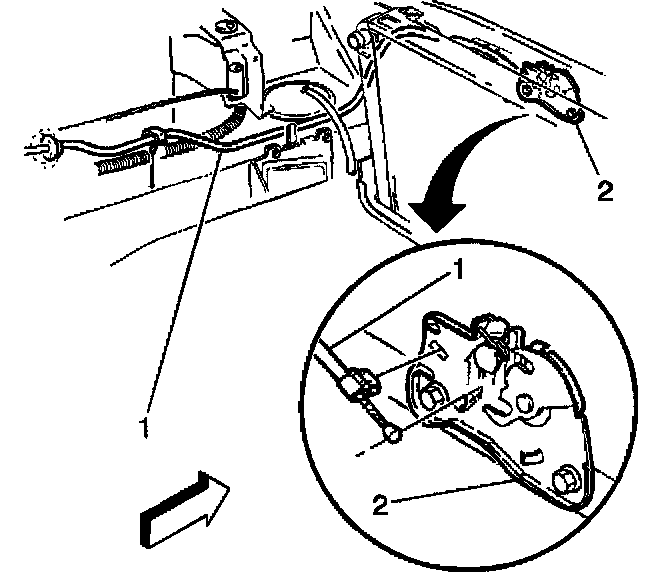

2. Disconnect the release cable (1) from the latch assembly (2).
3. Route the cable along the body rail toward the rear of the vehicle.
4. Remove the trim panel in order to access the release handle screws.

Important: Tie a string around the cable before removing the cable from the vehicle. This will ensure the proper routing and ease of installation of the release cable.

5. Remove the 2 bolts that retain the hood latch release handle.
6. Remove the grommet through the cowl opening.
7. Remove the cable through the passenger compartment.
8. Disconnect the cable from the release handle.

Installation Procedure

1. Connect the cable to the release handle.
2. Install the cable through the passenger compartment.

Important: Apply a mild soap in order to ease installation.

3. Install the grommet through the cowl opening.
4. Install the 2 bolts in order to retain the hood latch release handle.

Tighten
Tighten the bolts to 7 N.m (62 lb in).

5. Install the trim panel in order to cover the release handle screws.
6. Route the cable along the body rail toward the front of the vehicle.
7. Connect the release cable (1) to the latch assembly (2).
8. Close the hood.
