Rear

REMOVAL PROCEDURE
1. Open the rear compartment lid.

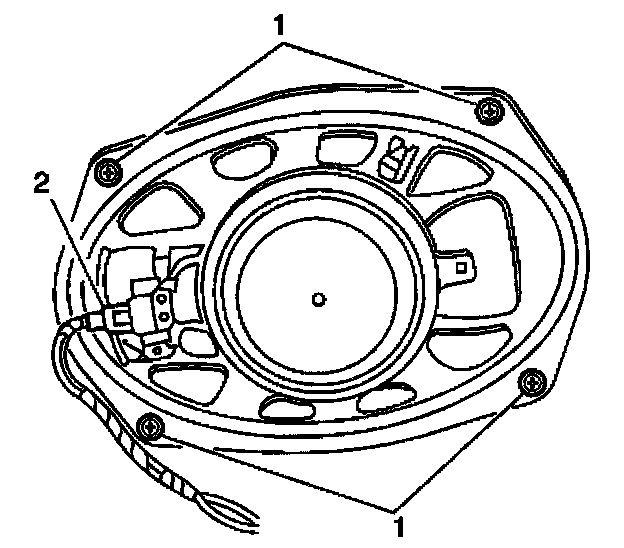

2. Remove the fasteners (1) retaining the rear speaker to the rear speaker retainer. Partially lower the speaker.
3. Disconnect the electrical connector (2).
4. Remove the speaker.

INSTALLATION PROCEDURE
1. Partially install the speaker.
2. Connect the electrical connector (2).
3. Align the speaker to the speaker retainer.

NOTICE: Refer to Fastener Notice in Cautions and Notices.
Install the speaker fasteners (1).

Tighten
Tighten the fasteners to 1.9 N.m (17 lb in).

4. Close the rear compartment lid.
