Front Upper

REMOVAL PROCEDURE
1. Remove the front door trim panel.
2. Place the door trim panel on a clean protected surface.
3. Disconnect the electrical connector.

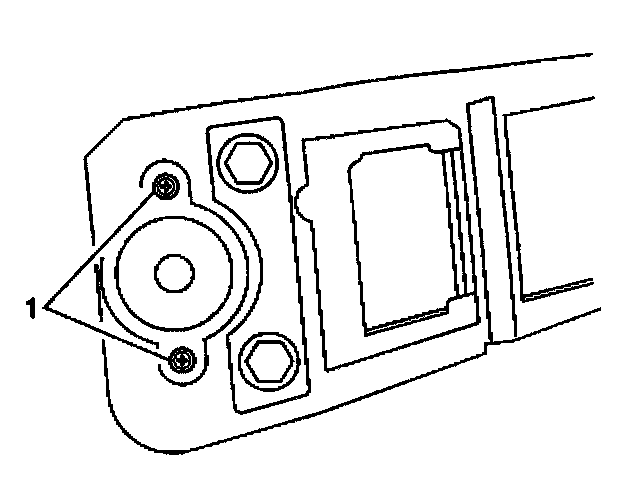

4. Remove the fasteners (1) retaining the speaker to the door trim panel.
5. Remove the speaker.

INSTALLATION PROCEDURE
1. Align the speaker to the door trim panel.

NOTICE: Refer to Fastener Notice in Cautions and Notices.

2. Install the speaker fasteners (1).

Tighten
Tighten the fasteners to 1.4 N.m (12 lb in).

3. Connect the electrical connector.
4. Install the front door trim panel.
