Front Door

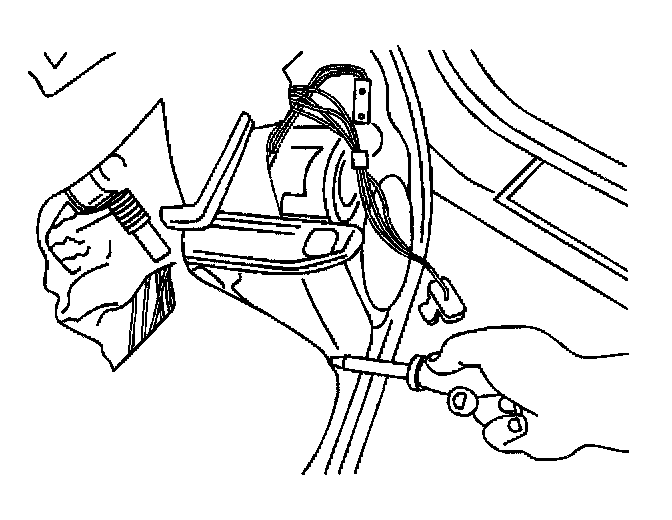

REMOVAL PROCEDURE
1. Remove the door trim panel.
2. Note the location of the speaker electrical connector.
3. Disconnect the electrical connectors.
4. Remove the fasteners.
5. Remove the speaker.

INSTALLATION PROCEDURE
1. Install the speaker into the door with the electrical connector located as noted during removal.

NOTICE: Refer to Fastener Notice in Cautions and Notices.

2. Install the speaker fasteners.

Tighten
Tighten the fasteners to 1.4 N.m (12 lb in).

3. Connect the electrical connectors.
4. Install the door trim panel.
