2-3 Shift Solenoid Replacement

REMOVAL PROCEDURE





1. Remove the case side cover.
2. Disconnect the transaxle wiring harness.

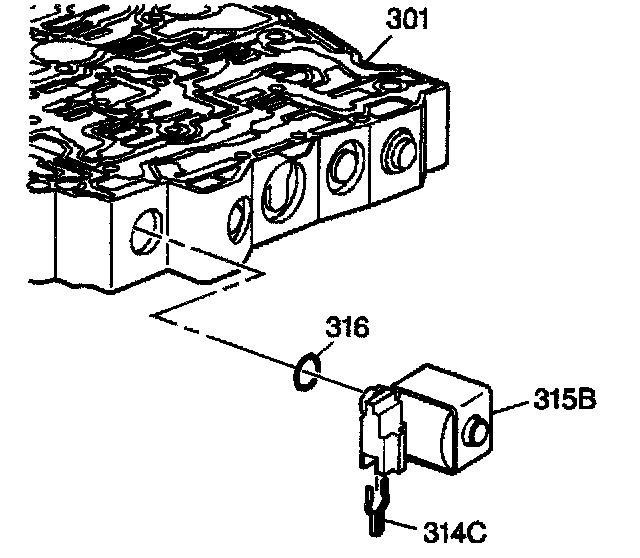

3. Remove the 2-3 shift solenoid (315B).

INSTALLATION PROCEDURE





1. Install the 2-3 shift solenoid (315B).
2. Connect the transaxle wiring harness.
3. Install the case side cover.
