Front Suspension

REMOVAL PROCEDURE
1. Raise and support the vehicle.

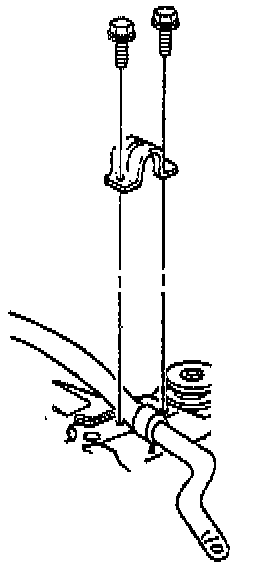

2. Remove the stabilizer shaft insulator bracket bolts.





3. Separate the insulator bracket from the insulator.

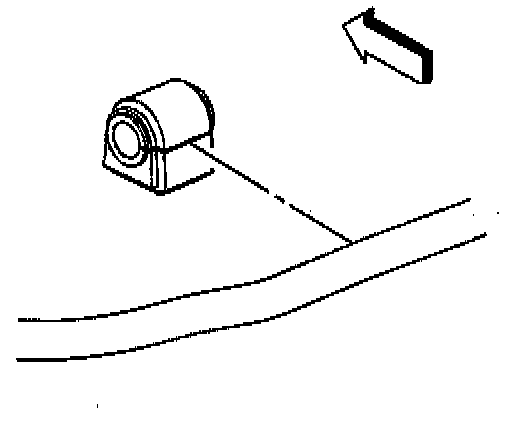

4. Remove the insulator from the stabilizer shaft.

INSTALLATION PROCEDURE
1. Install the insulator to the stabilizer shaft.
2. Install the stabilizer bracket.

NOTICE: Always use the correct fastener in the proper location. When you replace a fastener, use ONLY the exact part number for that application. The manufacturer will call out those fasteners that require a replacement after removal. The manufacturer will also call out the fasteners that require thread lockers or thread sealant. UNLESS OTHERWISE SPECIFIED, do not use supplemental coatings (paints, greases, or other corrosion inhibitors) on threaded fasteners or fastener joint interfaces. Generally, such coatings adversely affect the fastener torque and joint clamping force, and may damage the fastener. When you install fasteners, use the correct tightening sequence and specifications. Following these instructions can help you avoid damage to parts and systems.

3. Install the stabilizer shaft insulator bracket bolts.

Tighten
Tighten the stabilizer shaft insulator bracket bolts to 48 Nm (35 ft. lbs.).

4. Lower the vehicle.
