Steering Gear: Adjustments

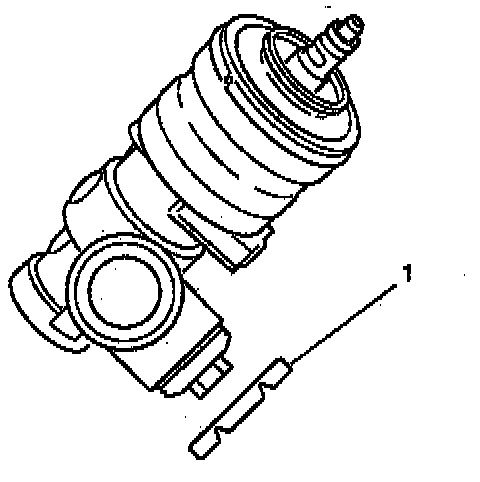

1. Loosen the adjuster plug lock nut (1).
2. Turn the adjuster plug clockwise until the adjuster plug bottoms in the gear assembly.
3. Turn the adjuster plug back 50° to 70° (approximately one flat).
4. Install the adjuster plug lock nut (1) to the adjuster plug. Tighten Hold the adjuster plug stationary while tightening the adjuster plug lock nut (1) 75 Nm (55 ft. lbs.).
