Turn Signal & Multifunction Switch

DISASSEMBLY PROCEDURE
1. Remove the upper and lower shrouds. Refer to STEERING COLUMN SHROUDS.

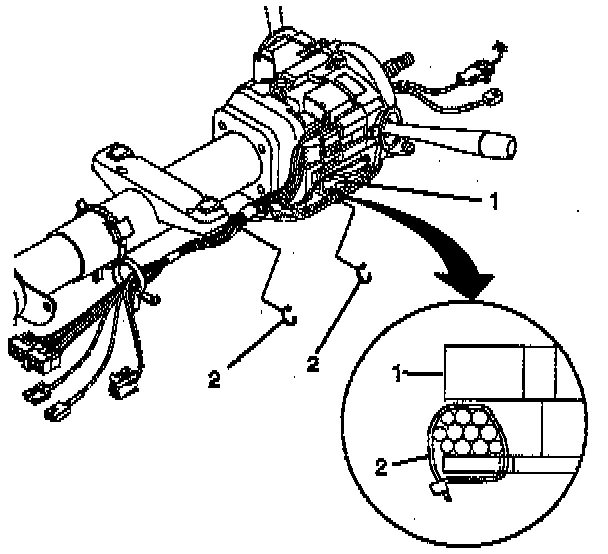

2. Remove 1 wire harness strap (2) from the wire harness assembly. Remove 1 wire harness strap (2) from the upper tilt head assembly (1).

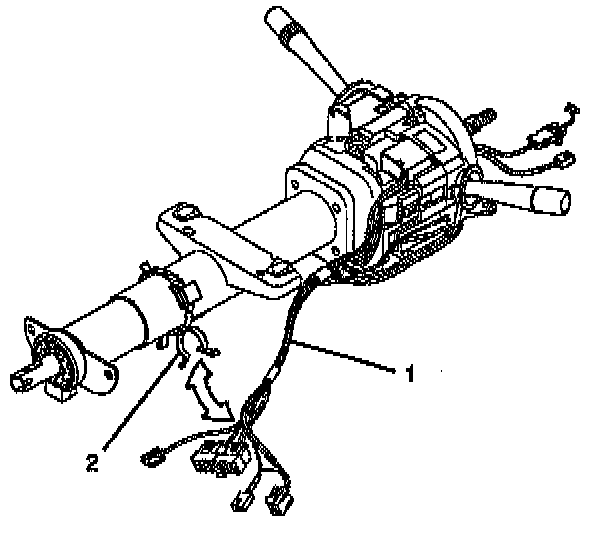

3. Pop the wire harness assembly (1) from the wire harness strap (2).





4. Remove the 2 tapping screws (1).
5. Remove the turn signal and multifunction switch assembly (2).

ASSEMBLY PROCEDURE

NOTICE: Always use the correct fastener in the proper location. When you replace a fastener, use ONLY the exact part number for that application. The manufacturer will call out those fasteners that require a replacement after removal. The manufacturer will also call out the fasteners that require thread lockers or thread sealant. UNLESS OTHERWISE SPECIFIED, do not use supplemental coatings (paints, greases, or other corrosion inhibitors) on threaded fasteners or fastener joint interfaces. Generally, such coatings adversely affect the fastener torque and joint clamping force, and may damage the fastener. When you install fasteners, use the correct tightening sequence and specifications. Following these instructions can help you avoid damage to parts and systems.

1. Install the turn signal and multifunction switch assembly (2) and secure by using 2 pan head tapping screws (1).

Tighten
Tighten the screws to 7 Nm (62 lb in).

2. Route the wire harness assembly (1) along the steering column jacket assembly.
3. Pop the wire harness assembly (1) into the wire harness strap (2).
4. Install 1 wire harness strap (2) to the upper tilt head assembly (1). Install 1 wire harness strap (2) onto the wire harness assembly.
5. Install the upper and lower shrouds. Refer to STEERING COLUMN SHROUDS.
