Power Steering Pump Pulley Replacement

REMOVAL PROCEDURE
^ Tools Required:
- J 37609-A Power Steering Pump Pulley Remover
- J 36015 Power Steering Pump Pulley Installer

1. Remove the drive belt. Refer to DRIVE BELT REPLACEMENT in ENGINE.
2. Remove the power steering (PS) pump from the engine block. Refer to POWER STEERING PUMP REPLACEMENT.

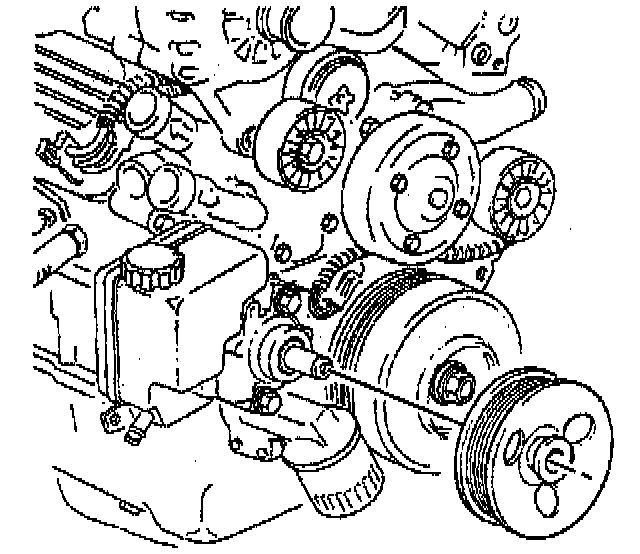

3. Use the the J 37609 in order to remove the PS pump pulley.

INSTALLATION PROCEDURE
^ Tools Required:
- J25033-B Power Steering Pump Pulley Installer
- J 36015 Power Steering Pump Pulley Installer

Important: An inward force must not be put exerted on the jump shaft during the assembly of the pulley.

NOTICE: Always use the correct fastener in the proper location. When you replace a fastener, use ONLY the exact part number for that application. The manufacturer will call out those fasteners that require a replacement after removal. The manufacturer will also call out the fasteners that require thread lockers or thread sealant. UNLESS OTHERWISE SPECIFIED, do not use supplemental coatings (paints, greases, or other corrosion inhibitors) on threaded fasteners or fastener joint interfaces. Generally, such coatings adversely affect the fastener torque and joint clamping force, and may damage the fastener. When you install fasteners, use the correct tightening sequence and specifications. Following these instructions can help you avoid damage to parts and systems.

Important:
^ The face of the pulley hub must be flush with the end of the pump driveshaft.
^ Do not use the arbor press to install the pulley.

1. Use the J 25033-B or the J 36015 in order to install the PS pump pulley to the PS pump.
2. Install the PS pump to the engine block. Refer to POWER STEERING PUMP REPLACEMENT.
3. Install the drive belt. Refer to DRIVE BELT REPLACEMENT in ENGINE.
4. Bleed the power steering system. Refer to BLEEDING POWER STEERING SYSTEM.
5. Inspect the system for leaks. Refer to POWER STEERING GEAR AND PUMP LEAKS.
