Instrument Panel - Rattles/Fuse Block Loose
File In Section: 8 - Chassis/Body ElectricalBulletin No.: 83-83-14
Date: August, 1998
Subject:
Instrument Panel Rattles and/or Fuse Block Loose (Reinforce Instrument Panel)
Models:
1998 Oldsmobile Intrigue
Condition
Some customers may comment that the instrument panel (I/P) rattles on the passenger side and/or the fuse block is loose in the opening. Technicians may also experience difficult reinstallation of the fuse block.
Cause
The I/P fuse block opening may be cracked at the forward corner.
Correction
Install I/P reinforcement bracket (P/N 10412722), using the service procedure.
Procedure
1. Remove I/P fuse block cover.
2. Release fuse block retaining tabs and allow fuse block to lean back into I/P.

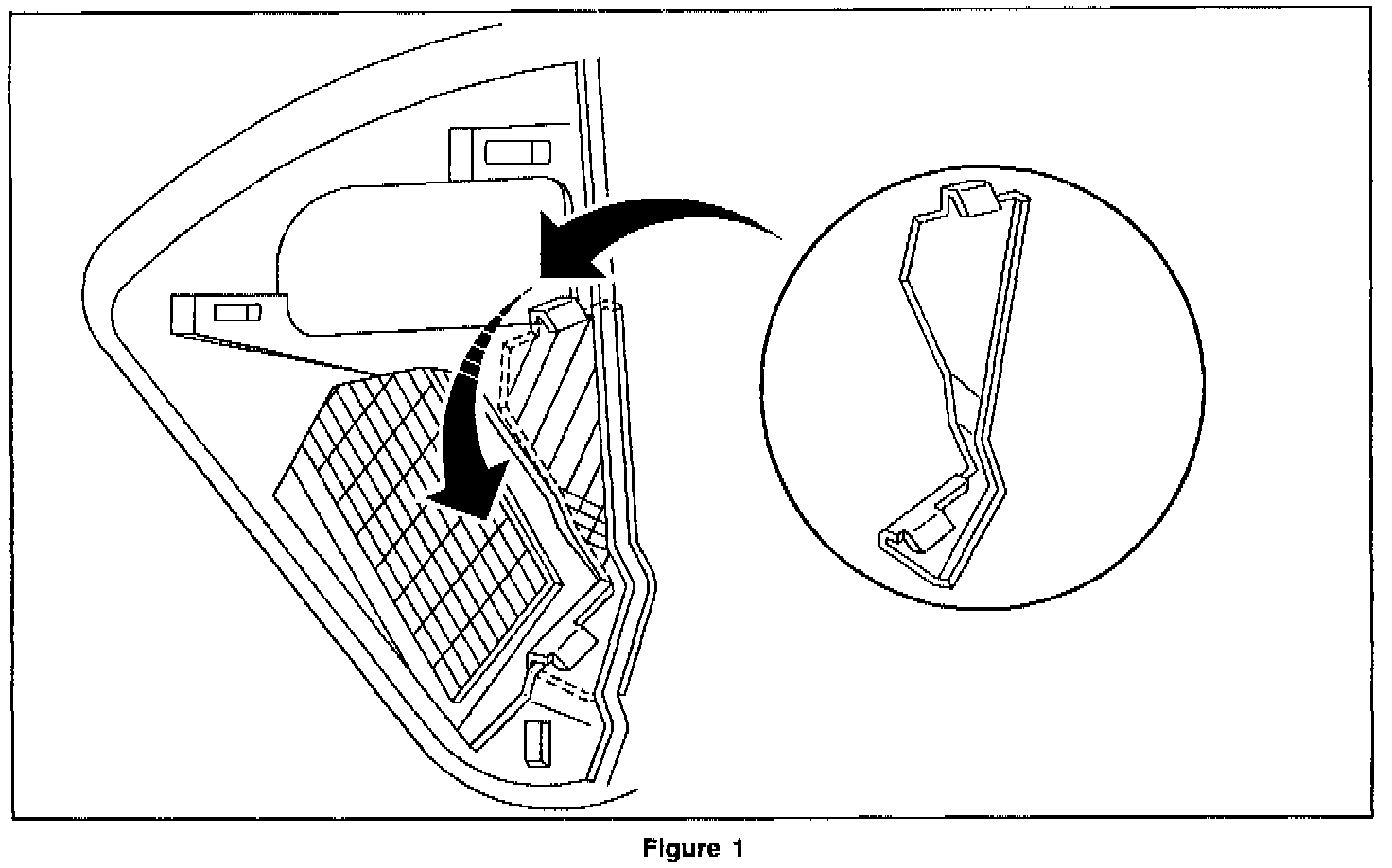

3. Install fuse block reinforcement bracket by inserting bracket through upper access hole in I/P and route between fuse block and I/P structure (see Figure 1).

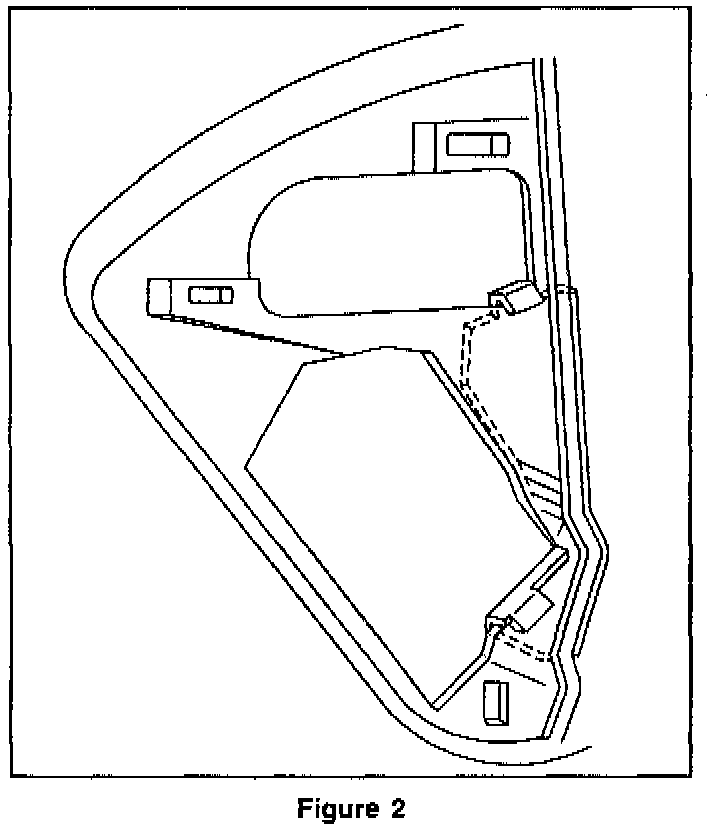

4. Align the reinforcement bracket (see Figure 2) and bend retaining tabs around the side structure of the I/P.
5. Install fuse block to I/P by snapping into place.
6. Install I/P fuse block cover.
Parts Information
P/N Description
10412722 Bracket, I/P Wiring Fuse Block
Parts are currently available from GMSPO.
Warranty Information
For vehicles repaired under warranty, use the table.
Labor Operation Description Labor Time
C04710 Install bracket to 0.2 hr
I/P Mounted Fuse Block
