Home >> Oldsmobile >> 1998 >> Intrigue V6-3.8L VIN K >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Ground Distribution >> LH Body Harness Ground G301

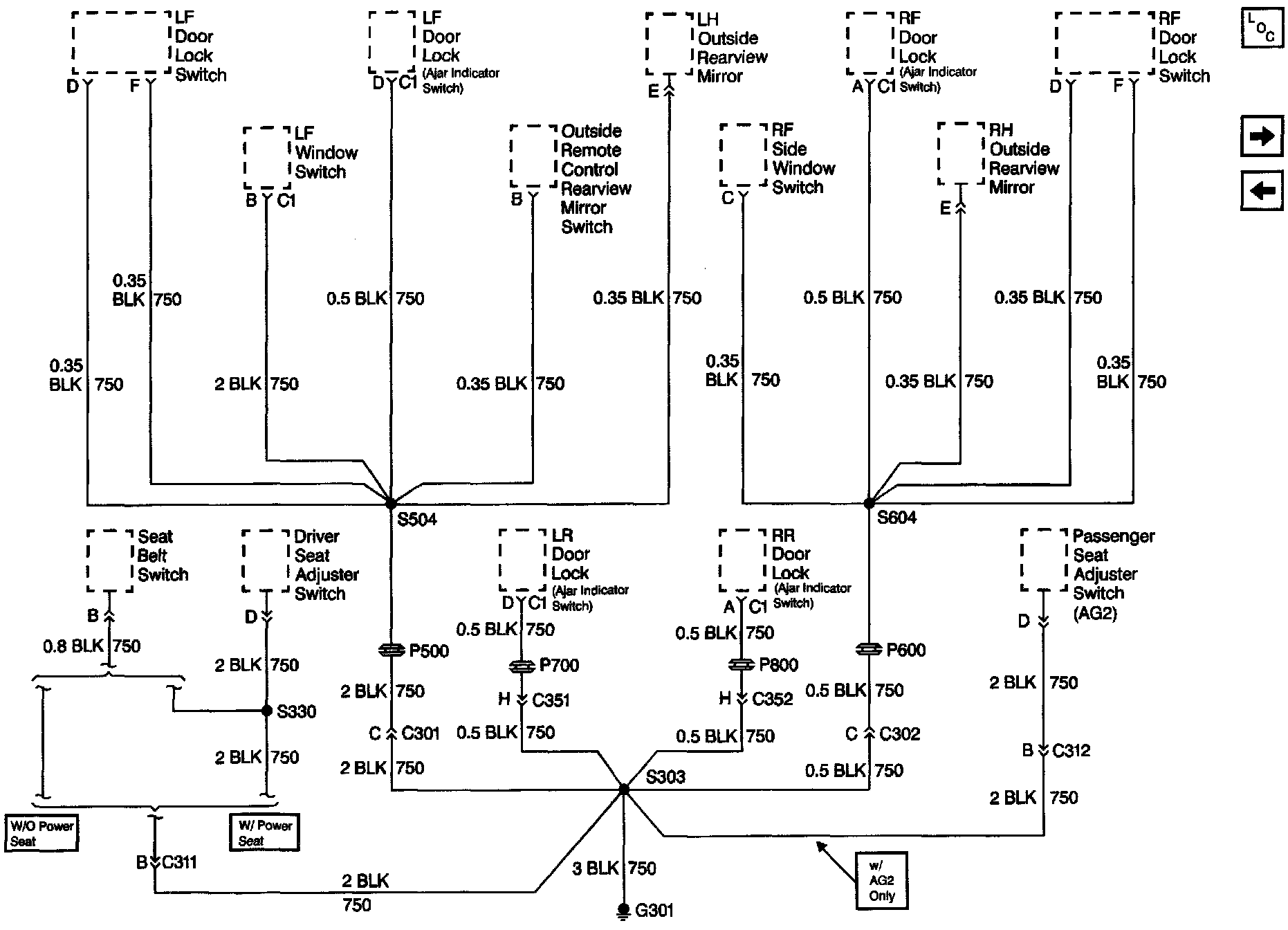

LH Body Harness Ground G301

LH Body Harness Ground G301:
