Shoulder Belt Guide Adjuster Replacement

Removal Procedure
1. Open the seat belt guide loop cover.
2. Remove the guide loop nut.
3. Remove the guide loop from the guide adjuster bracket.





4. Remove the center pillar upper trim panel. Refer to Trim Panel Replacement - Upper Center Pillar in Interior Trim.

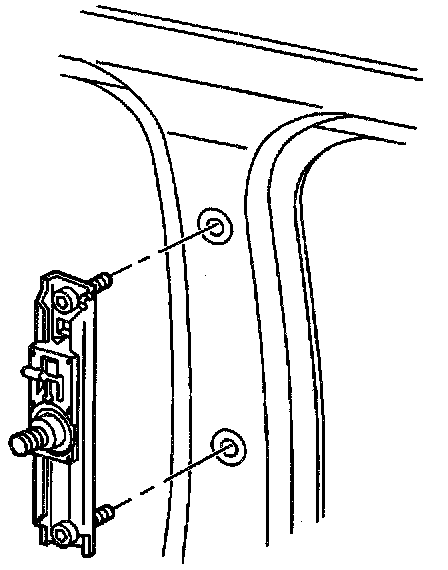

5. Remove the shoulder belt guide adjuster bracket bolts.
6. Remove the shoulder belt guide adjuster bracket from the center pillar.

Installation Procedure

Important: Verify that the release lever at the top of the bracket is in the full up position.





1. Position the shoulder belt guide adjuster bracket to the center pillar.

Notice: Refer to Fastener Notice in Cautions and Notices.

2. Install the shoulder belt guide adjuster bracket bolts.

Tighten
Tighten the shoulder belt guide adjuster bracket bolts to 42 N.m (31 lb ft).





3. Install the center pillar upper trim panel. Refer to Trim Panel Replacement - Upper Center Pillar in Interior Trim.
4. Install the guide loop to the guide adjuster bracket.
5. Install the guide loop nut.

Tighten
Tighten the guide loop nut to 42 N.m (31 lb ft).

6. Close the seat belt guide loop cover.
