Rear

Removal Procedure
1. Remove the rear seat cushion. Refer to Seat Cushion Replacement - Rear in Seats.





2. Remove the rear seat back. Refer to Seat Back Replacement - Rear (Stationary Seat Back w/Armrest) or Seat Back Replacement - Rear (Split Folding Seat Back w/Armrest) or Seat Back Replacement - Rear (Stationary Seat Back Armrest) in Seats.
3. Remove the rear quarter upper trim panel. Refer to Trim Panel Replacement - Rear Quarter Upper in Interior Trim.
4. Remove the rear quarter lower trim panel. Refer to Trim Panel Replacement - Rear Quarter Lower in Interior Trim.

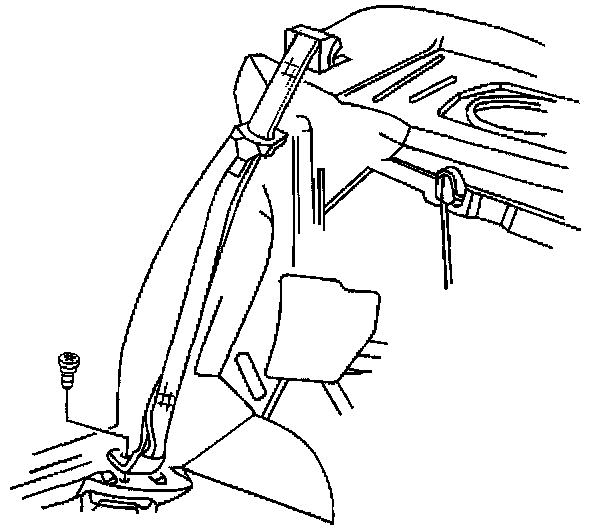

5. Remove the rear seat belt retractor bolt (anchor).





6. Loosen the rear window trim panel. Refer to Trim Panel Replacement - Rear Shelf in Interior Trim.
7. Remove the rear sound barrier. Refer to Sound Barrier Replacement - Rear Seat Back in Interior Trim.

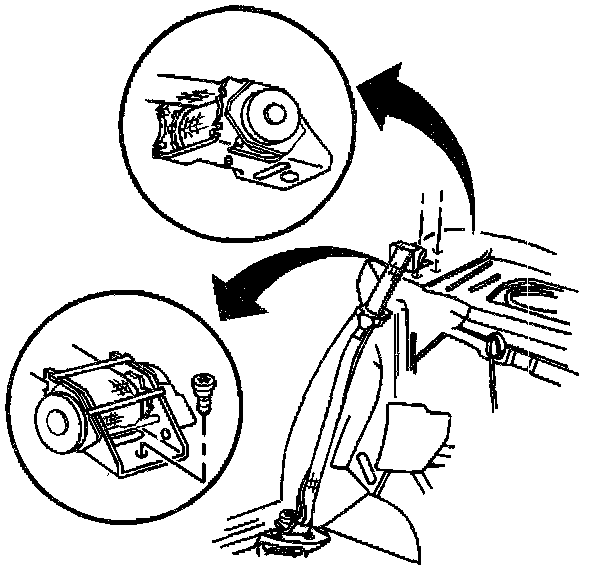

8. Remove the rear seat belt retractor bolt.
9. Remove the rear seat belt retractor from the vehicle.

Installation Procedure
1. Install the rear seat belt retractor to the vehicle.

Notice: Refer to Fastener Notice in Cautions and Notices.

Important: Be sure to seat the alignment tabs.

2. Install the rear seat belt retractor bolt.

Tighten
Tighten the seat belt retractor bolt to 42 N.m (31 lb ft).

3. Install the rear sound barrier. Refer to Sound Barrier Replacement - Rear Seat Back in Interior Trim.





4. Install the rear window trim panel. Refer to Trim Panel Replacement - Rear Shelf in Interior Trim.
5. Install the rear seat belt retractor bolt (anchor).

Tighten
Tighten the seat belt retractor bolt to 42 N.m (31 lb ft).

6. Install the rear quarter lower trim panel. Refer to Trim Panel Replacement - Rear Quarter Lower in Interior Trim.
7. Install the rear quarter upper trim panel. Refer to Trim Panel Replacement - Rear Quarter Upper in Interior Trim.





8. Install the rear seat back. Refer to Seat Back Replacement - Rear (Stationary Seat Back w/Armrest) or Seat Back Replacement - Rear (Split Folding Seat Back w/Armrest) or Seat Back Replacement - Rear (Stationary Seat Back Armrest) in Seats.
9. Install the rear seat cushion. Refer to Seat Cushion Replacement - Rear in Seats.
