Home
>>
Oldsmobile
>>
1998
>>
Intrigue V6-3.8L VIN K
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Diagrams
>>
Electrical Diagrams
>>

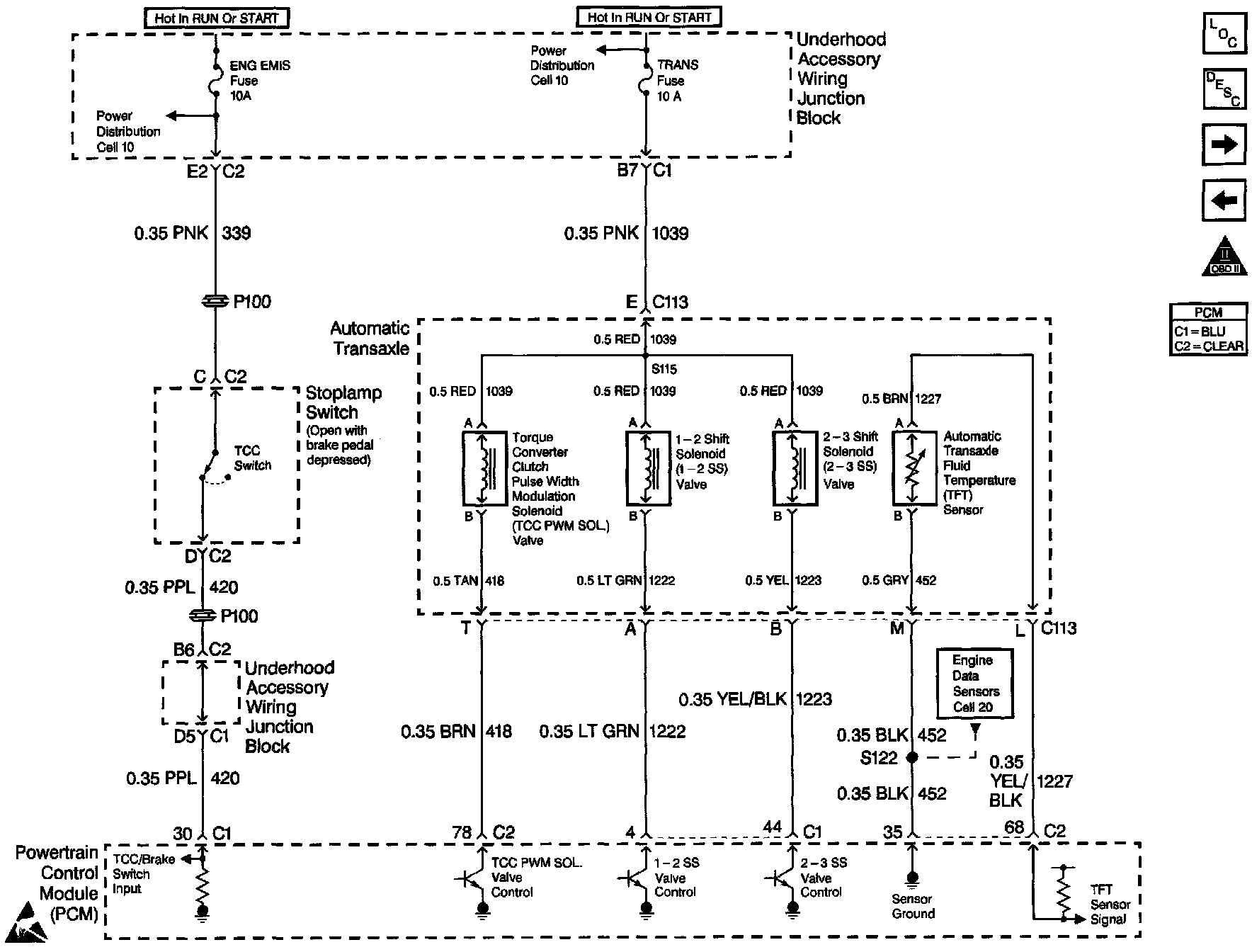

Stoplamp Switch, TCC PWM Solenoid, 1-2 SS, 2-3 Valve & TFT
Stoplamp Switch, TCC PWM Solenoid, 1-2 SS, 2-3 Valve & TFT
