Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Oldsmobile
>>
1998
>>
Intrigue V6-3.8L VIN K
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>

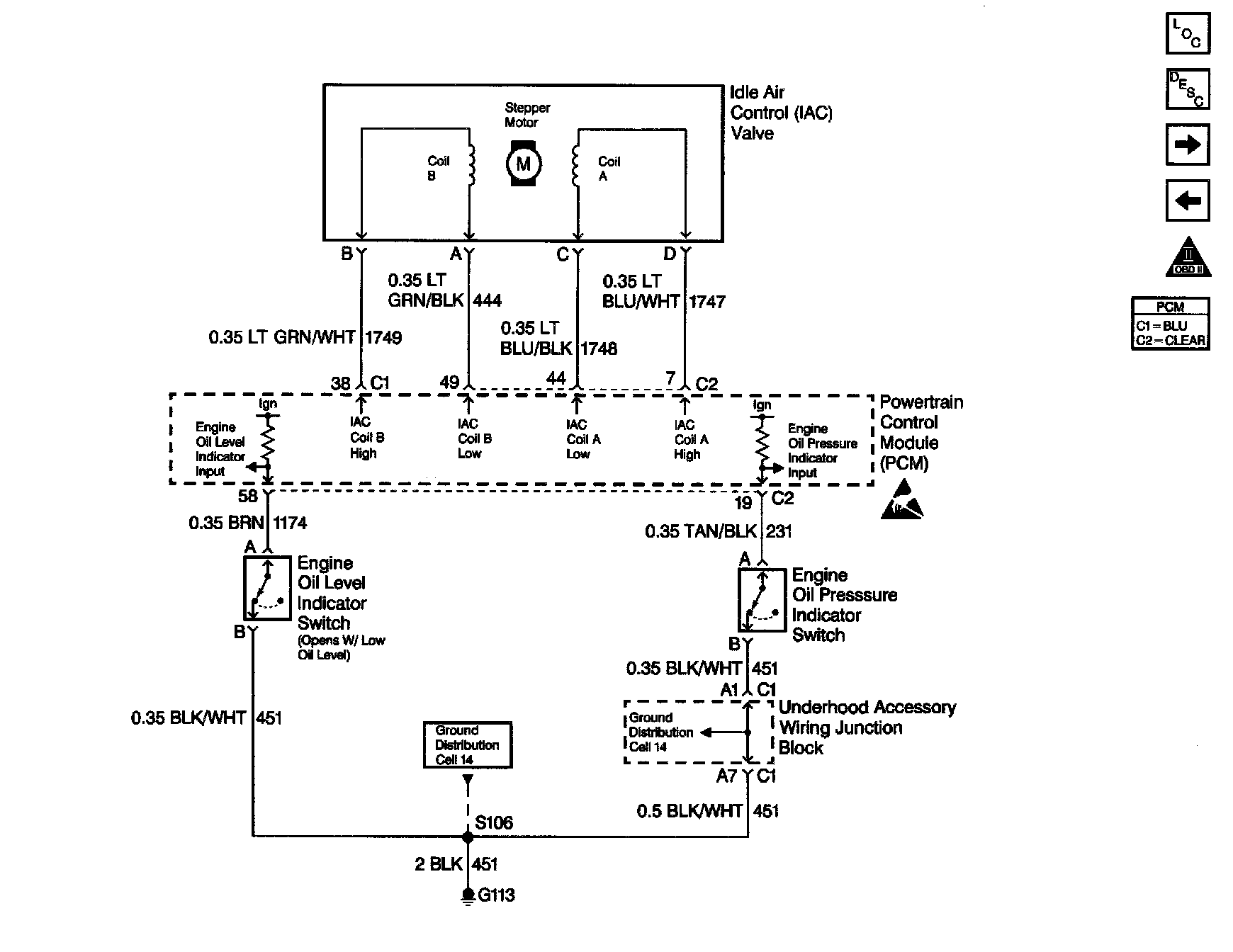

IAC Valve, Engine Oil Level SW, Engine Oil Pressure SW
IAC Valve, Engine Oil Level SW, Engine Oil Pressure SW
