Underhood Accessory Wiring Junction Block, Ignition Switch
Underhood Accessory Wiring Junction Block, Ignition Switch

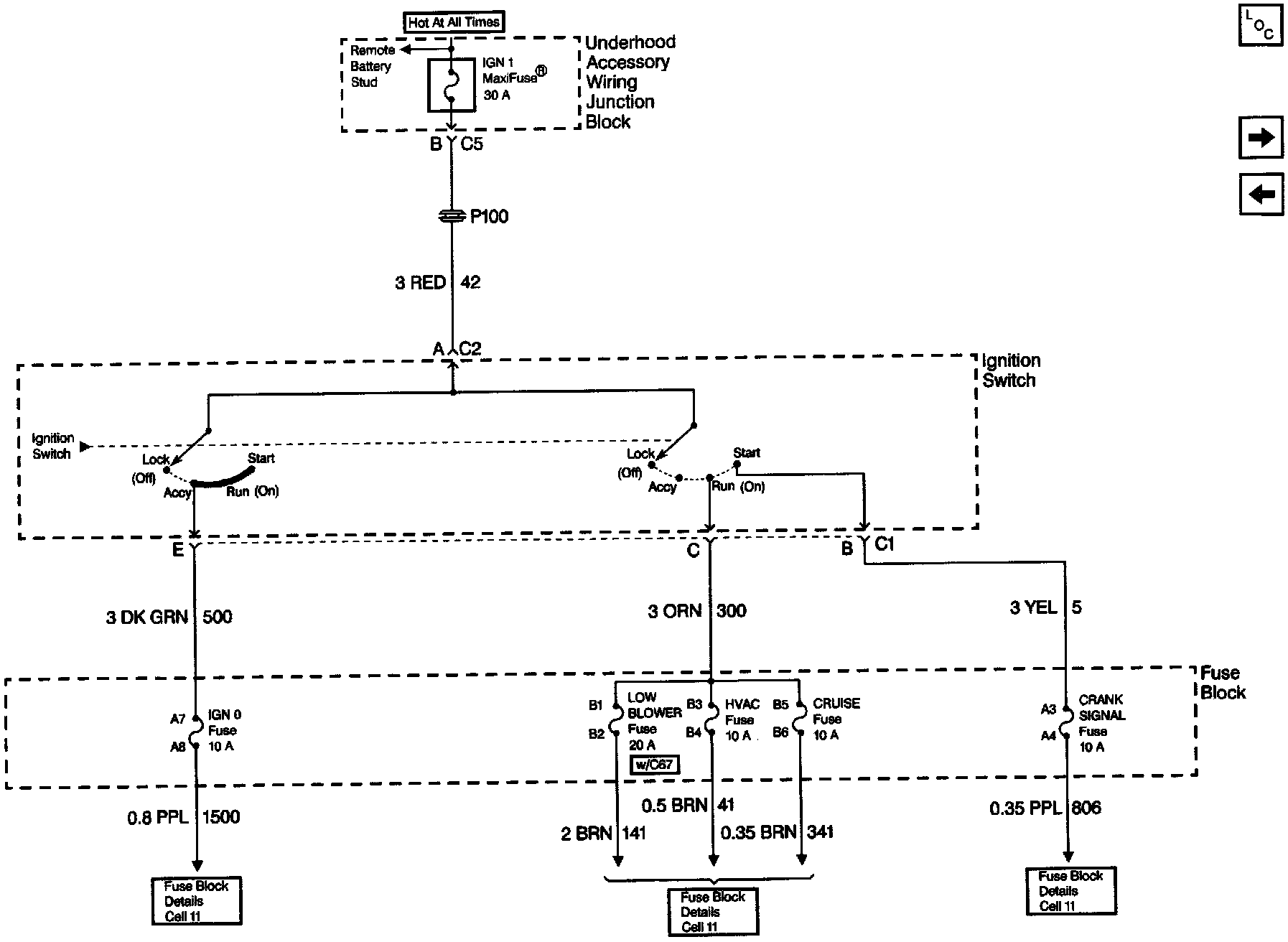

Underhood Accessory Wiring Junction Block, Ignition SW & Fuse Block (Part 1 Of 2):

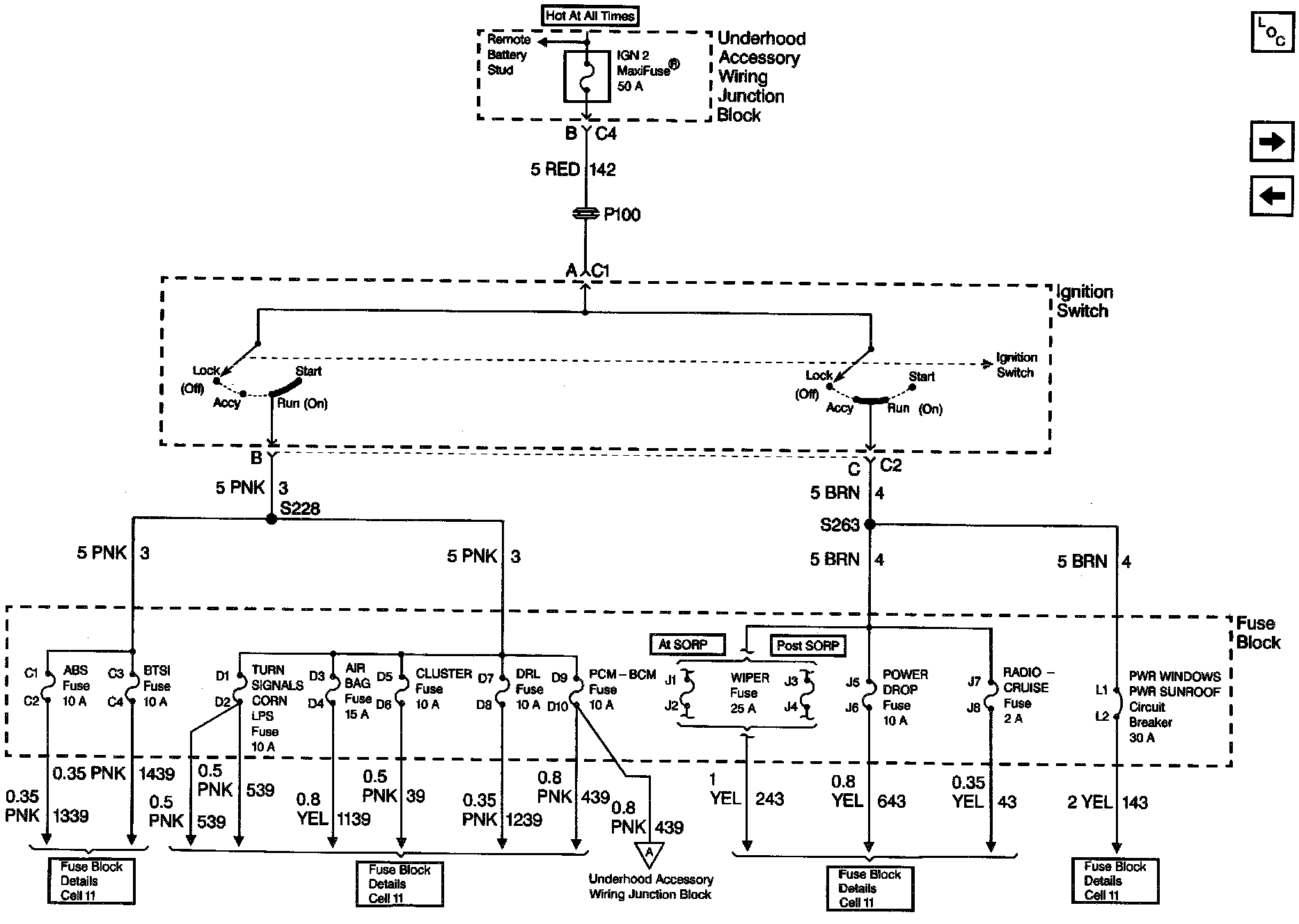

Underhood Accessory Wiring Junction Block, Ignition SW & Fuse Block (Part 2 Of 2):
