Home
>>
Oldsmobile
>>
1998
>>
Intrigue V6-3.8L VIN K
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Power Distribution Diagrams
>>
Fuses
>>

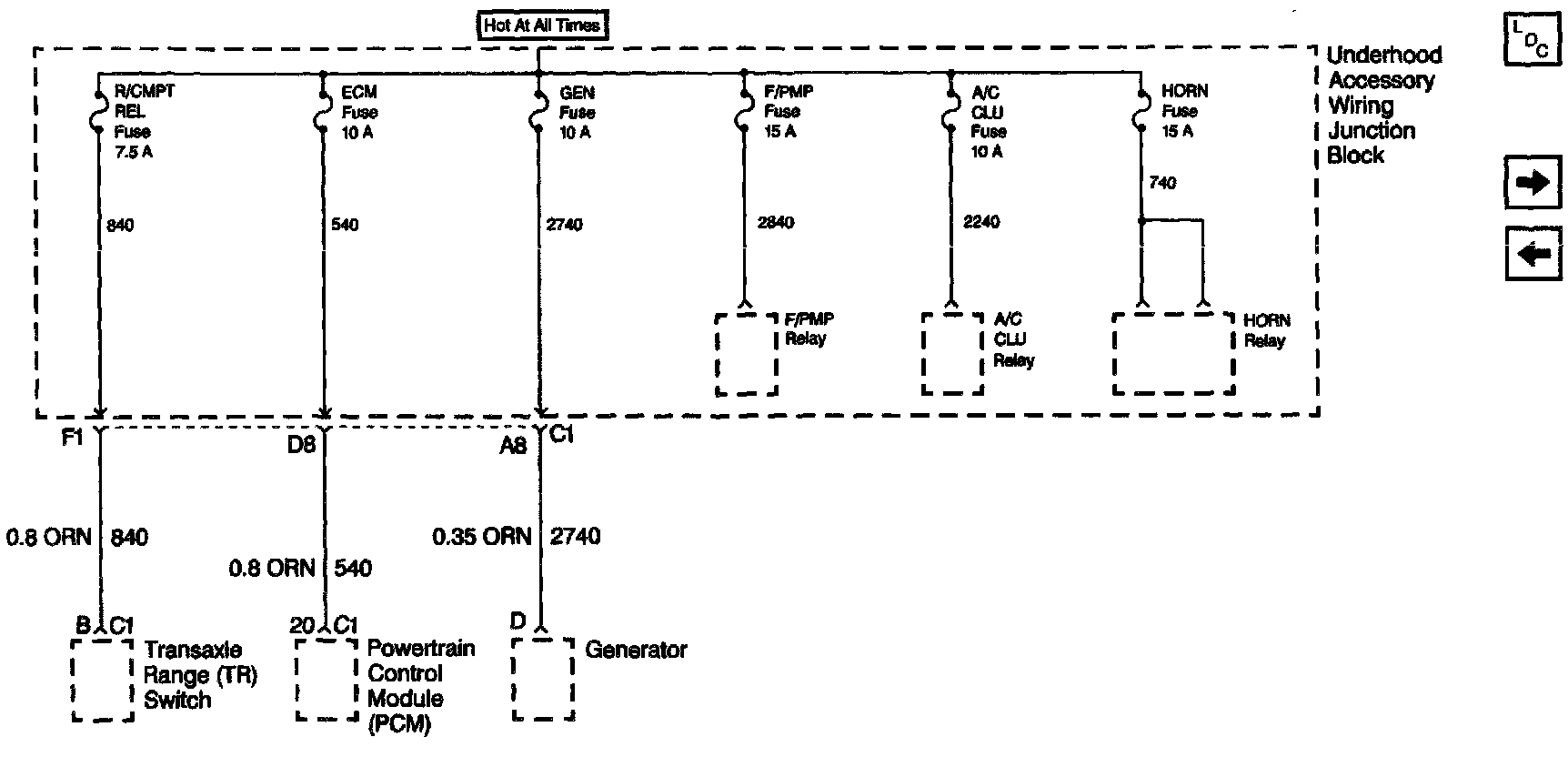

R/CMPT REL, ECM, GEN, F/PMP, A/C CLU & Horn Fuses
R/CMPT REL, ECM, GEN, F/PMP, A/C CLU & Horn Fuses
R/CMPT REL, ECM, GEN, F/PMP, A/C CLU & Horn Fuses:
