Home >> Oldsmobile >> 1998 >> Intrigue V6-3.8L VIN K >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Power Distribution Diagrams >> Fuses >> LP Park, HDLPR Fuses

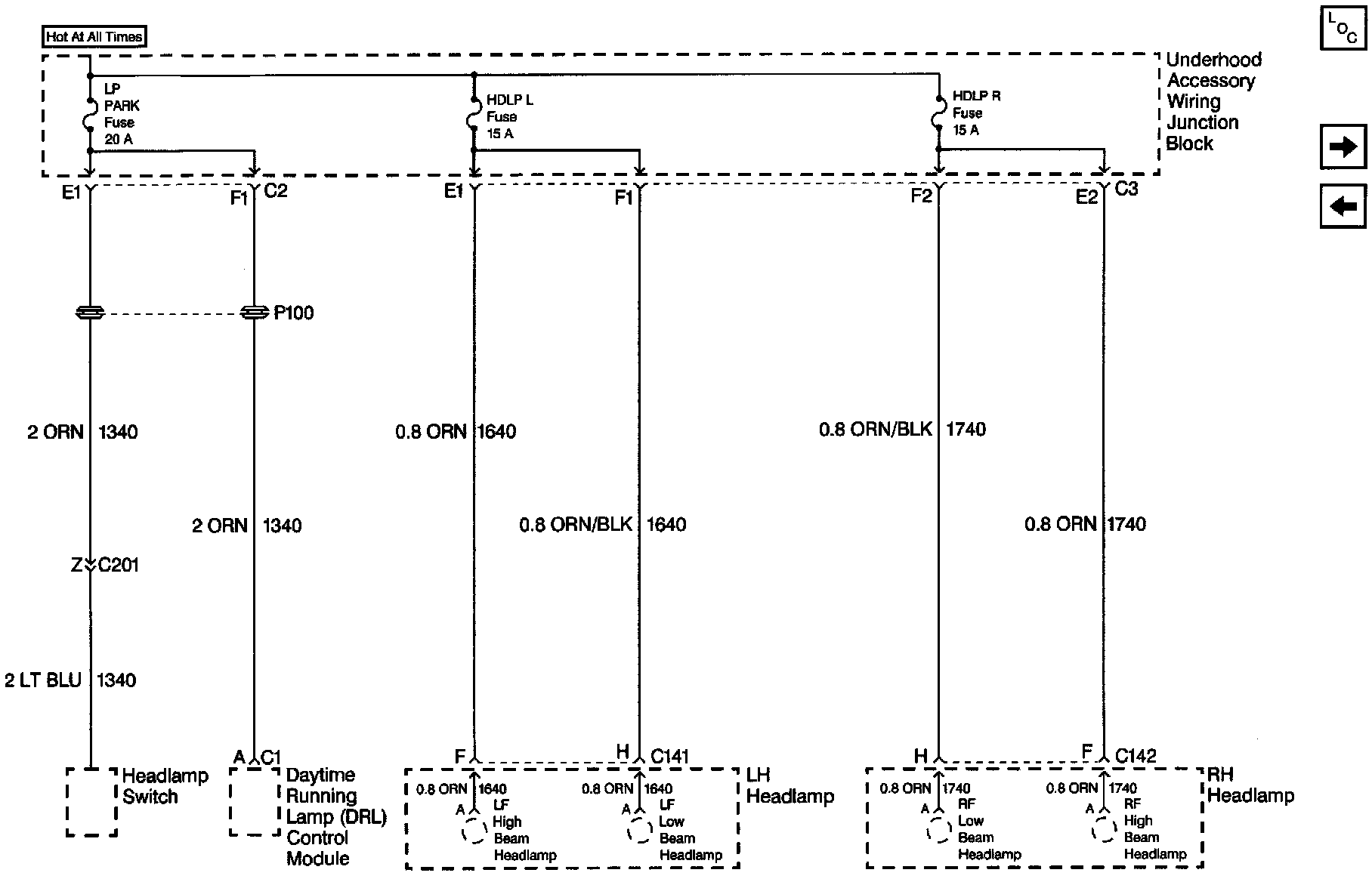

LP Park, HDLPR Fuses

LP Park, HDLPR Fuses:
