Home
>>
Oldsmobile
>>
1998
>>
Intrigue V6-3.8L VIN K
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Power Distribution Diagrams
>>

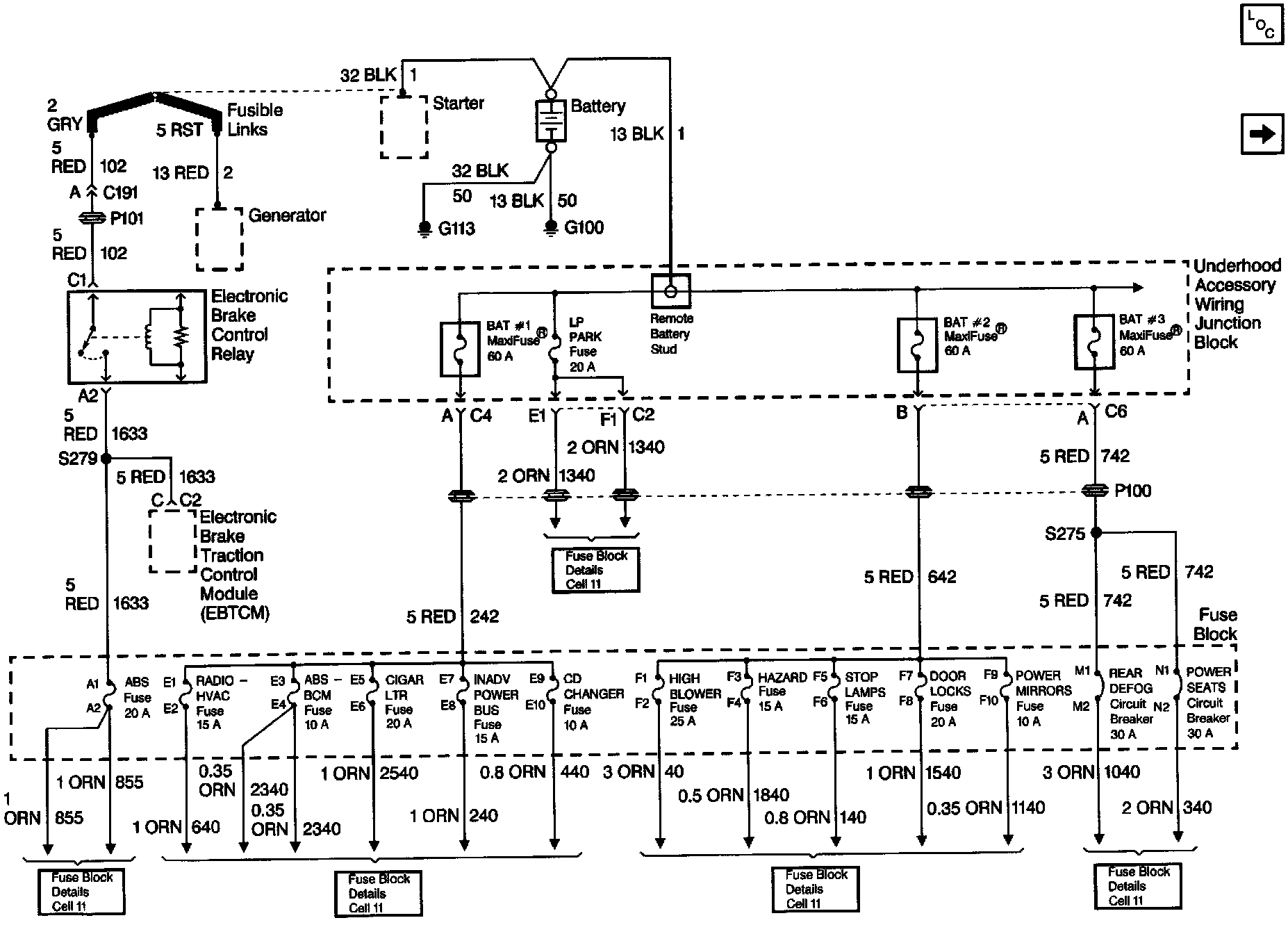

Battery, Starter, Generator, Underhood Accessory Junction Block & Fuse Block
Battery, Starter, Generator, Underhood Accessory Junction Block & Fuse Block
Battery, Starter, Generator, Underhood Accessory Junction Block & Fuse Block:
