Home >> Oldsmobile >> 1998 >> Intrigue V6-3.8L VIN K >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Ground Distribution >> RH I/P Ground G200

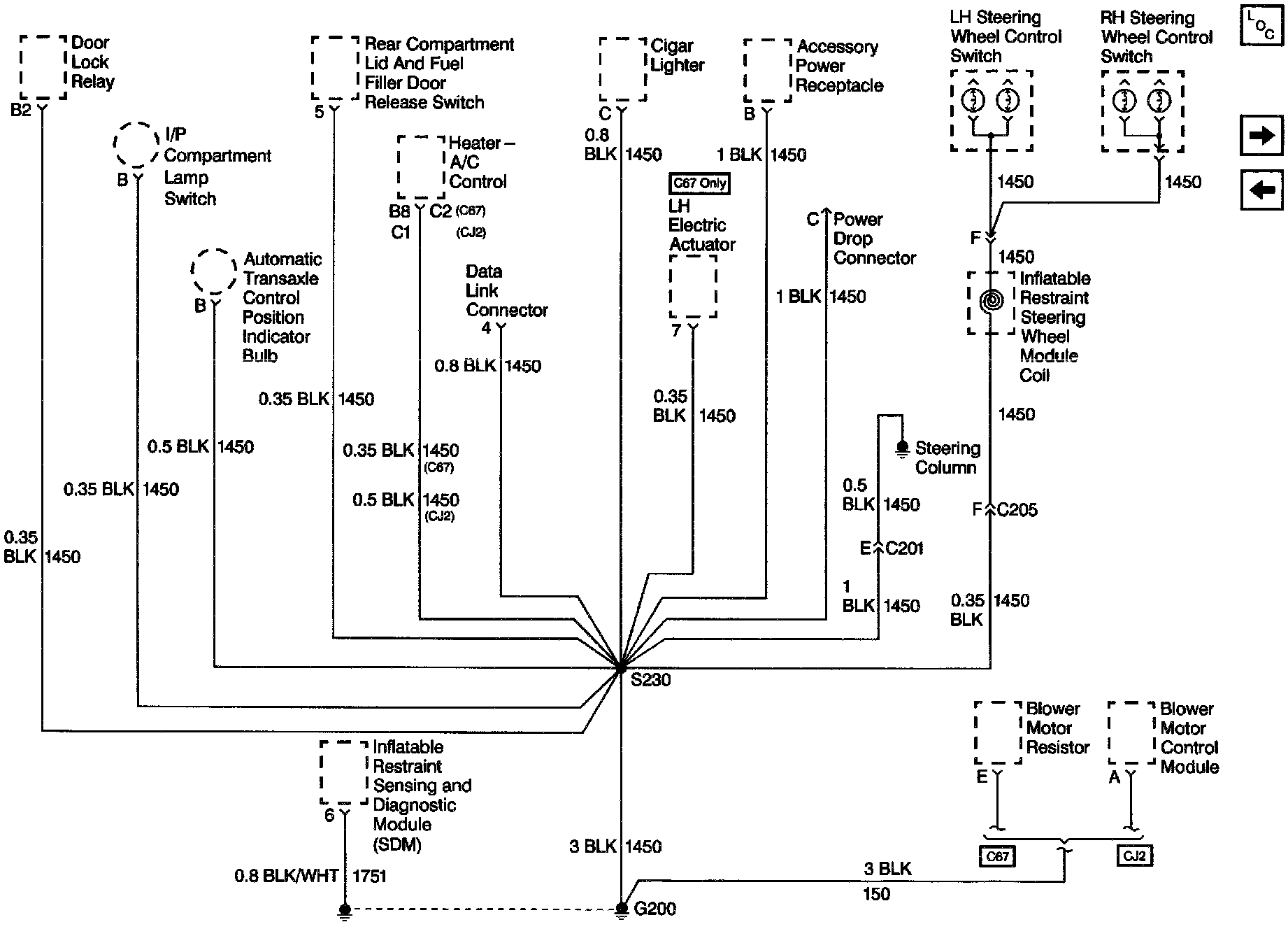

RH I/P Ground G200

RH I/P Ground G200:
