Home
>>
Oldsmobile
>>
1998
>>
Intrigue V6-3.8L VIN K
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution
>>
RH Body Harness Ground G302
RH Body Harness Ground G302

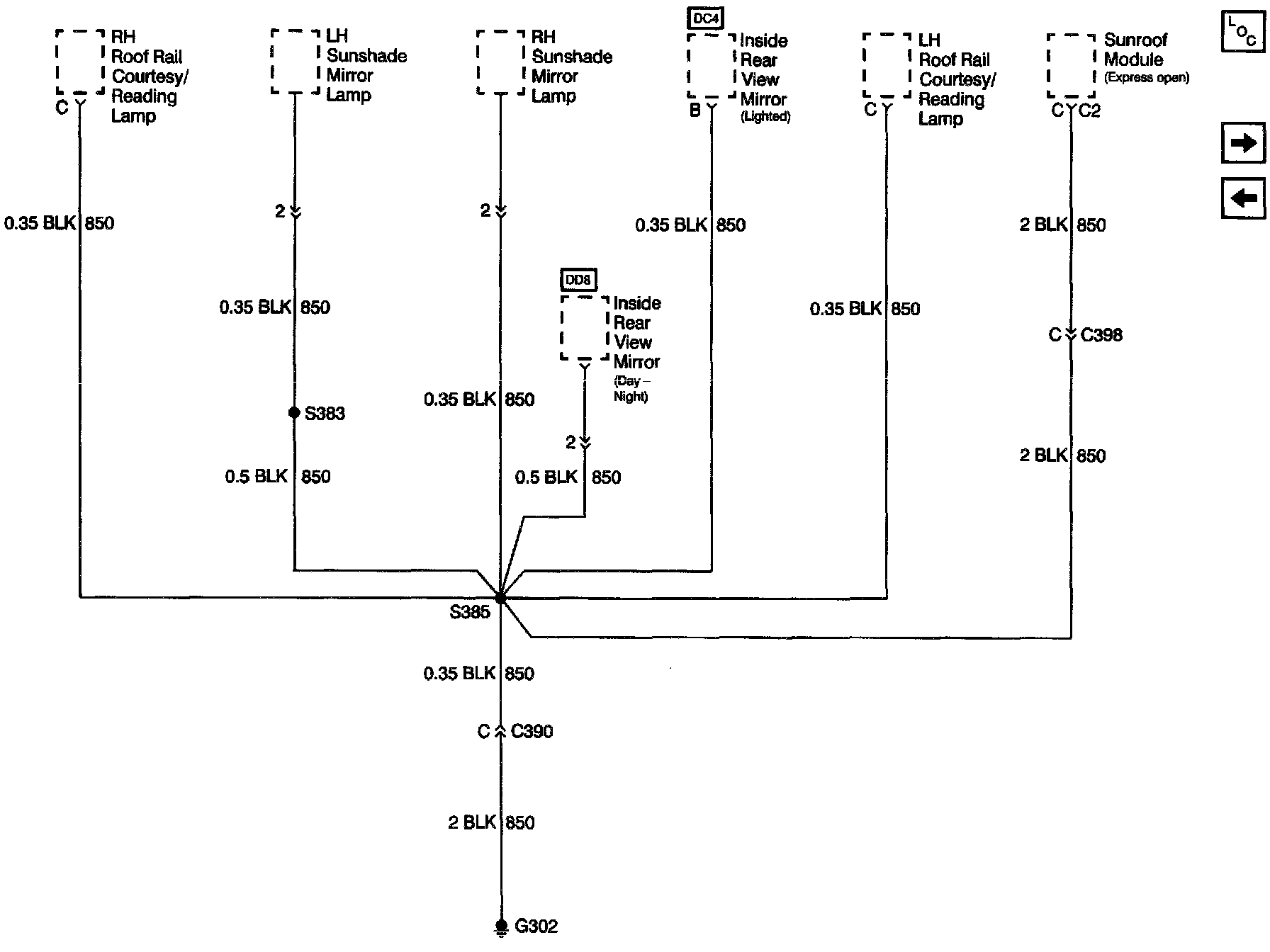

RH Body Harness Ground G302 (Part 1 Of 2):

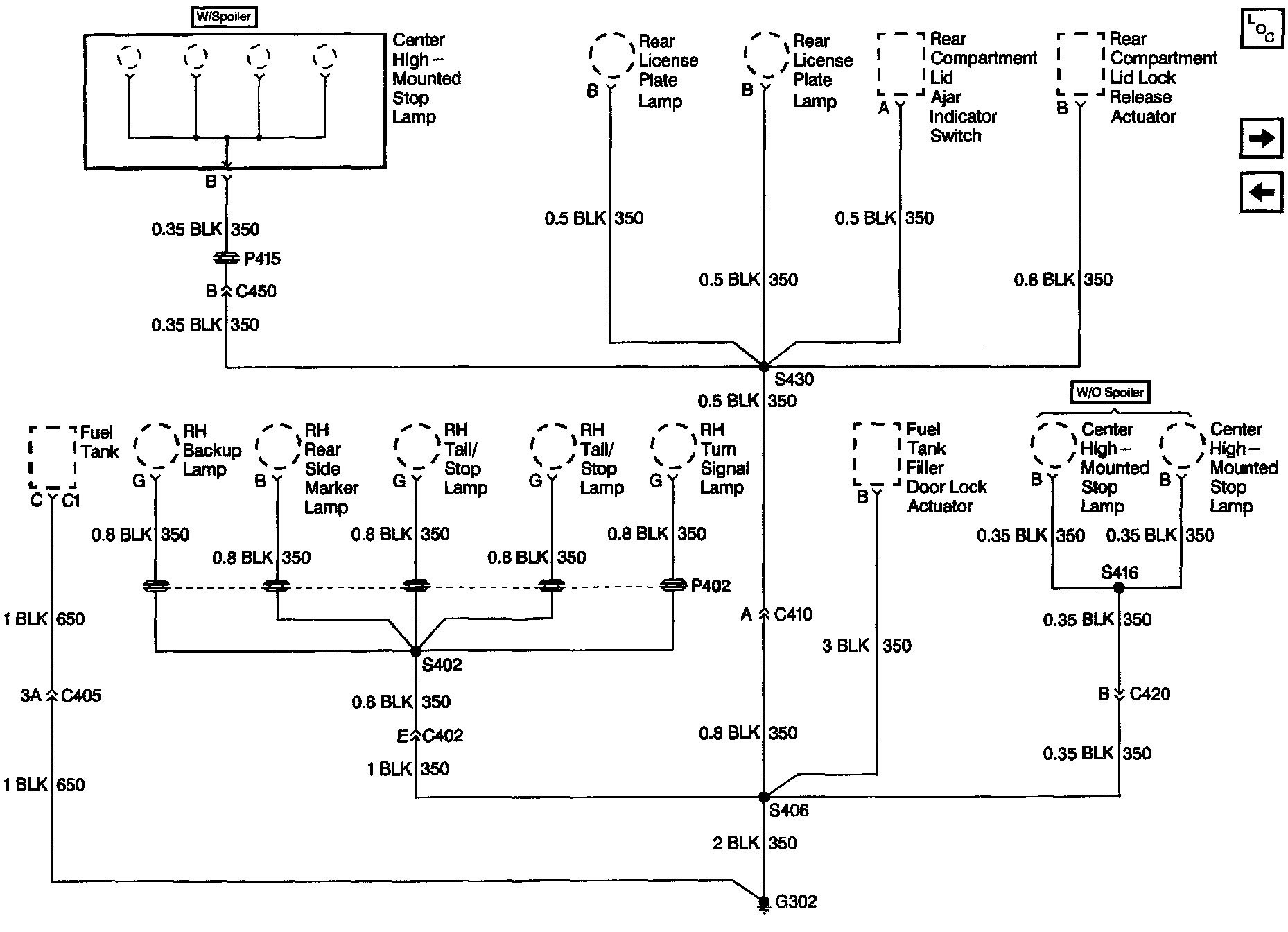

RH Body Harness Ground G302 (Part 2 Of 2):
