Home
>>
Oldsmobile
>>
1998
>>
Intrigue V6-3.8L VIN K
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution
>>

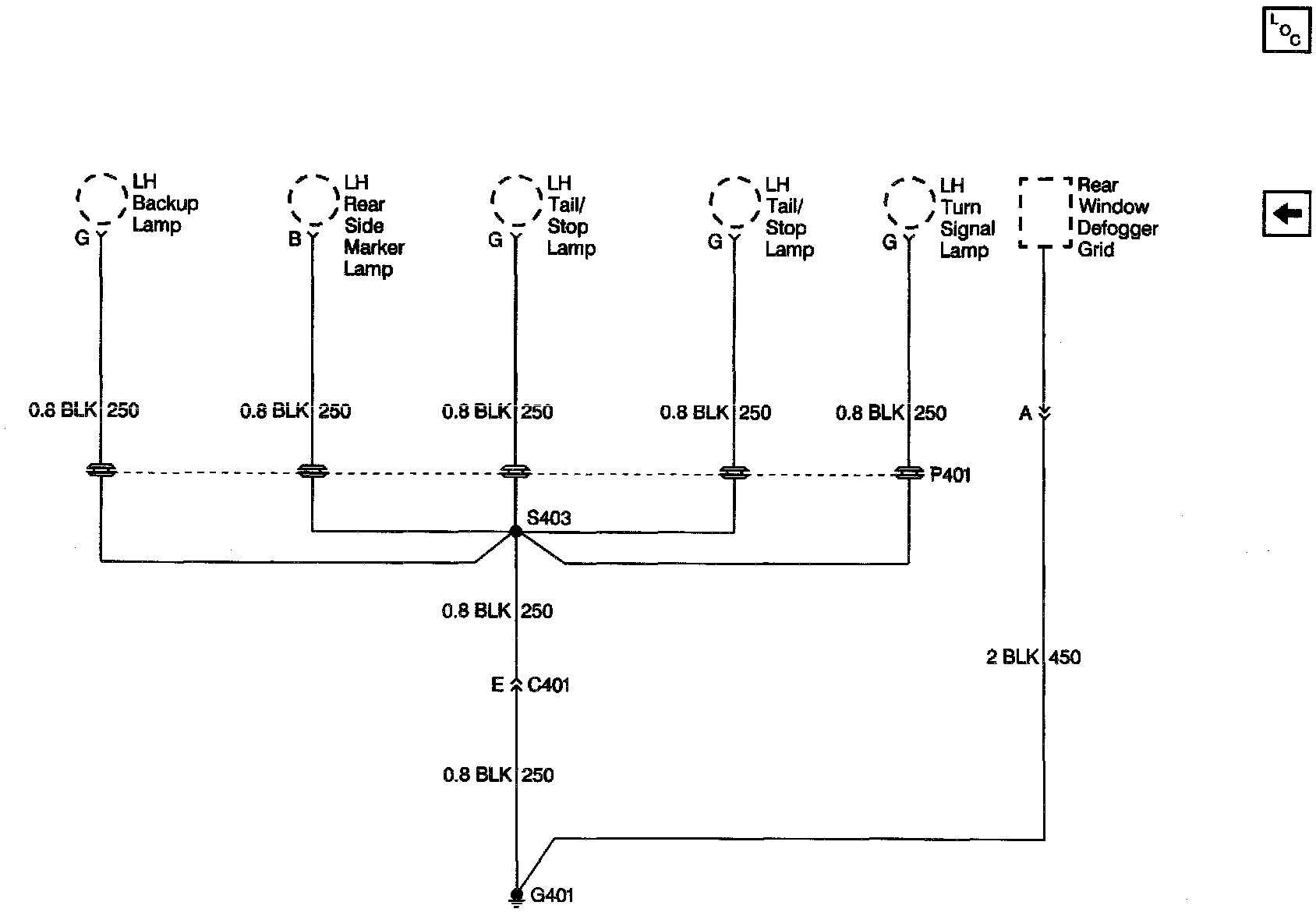

LH Rear Compartment Ground G401
LH Rear Compartment Ground G401
LH Rear Compartment Ground G401:
