Radiator Hose Replacement - Outlet

REMOVAL PROCEDURE

^ Tools Required
- J 38185 Hose Clamp Pliers

1. Drain the coolant..
2. Remove the electric cooling fan assembly.

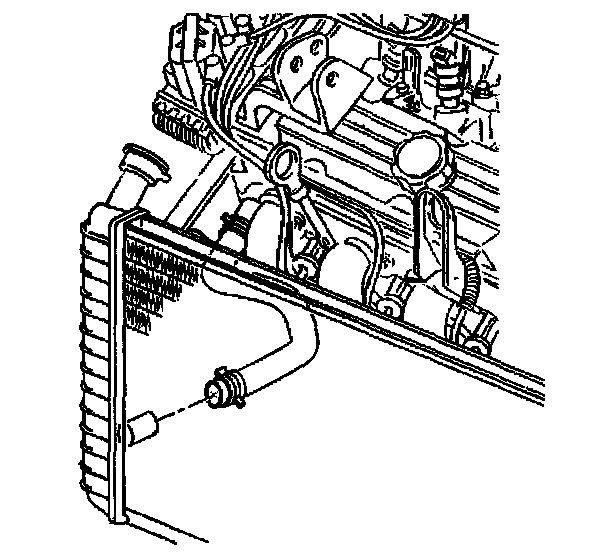

3. Disconnect the outlet hose from the radiator using the J 38185.

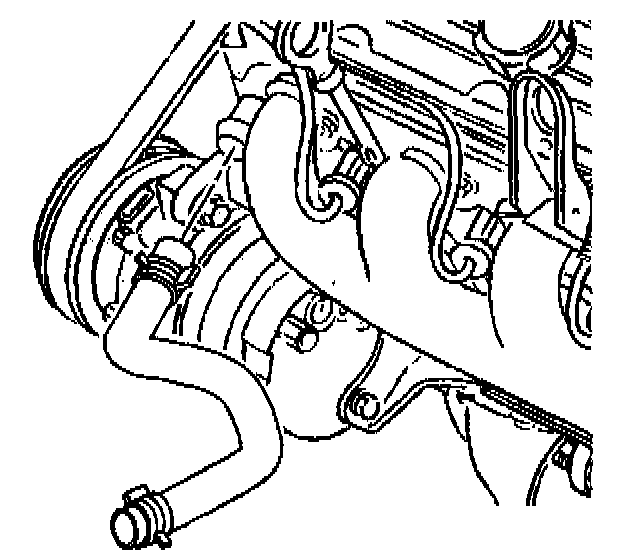

4. Disconnect the outlet hose from the water pump housing using the J 38185.
5. Remove the outlet hose.

INSTALLATION PROCEDURE





1. Install the outlet hose in position and align the marks on the hose.
2. Connect the outlet hose to the water pump housing using the J 38185.

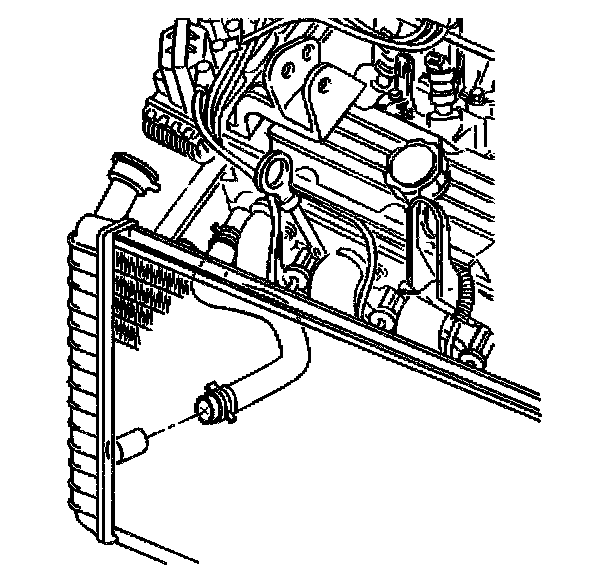

3. Connect the outlet hose to the radiator using the J 38185.
4. Install the electric cooling fan assembly.

IMPORTANT: To properly fill the system you must use the air bleed vents.

5. Fill the cooling system with engine coolant.
6. Inspect for leaks.
