Heater Hoses
Tools RequiredJ38185 Hose Clamp Pliers
Removal Procedure
1. Drain the cooling system.
2. Remove the fuel injector sight shield. Refer to Engine Cover Replacement Service and Repair.

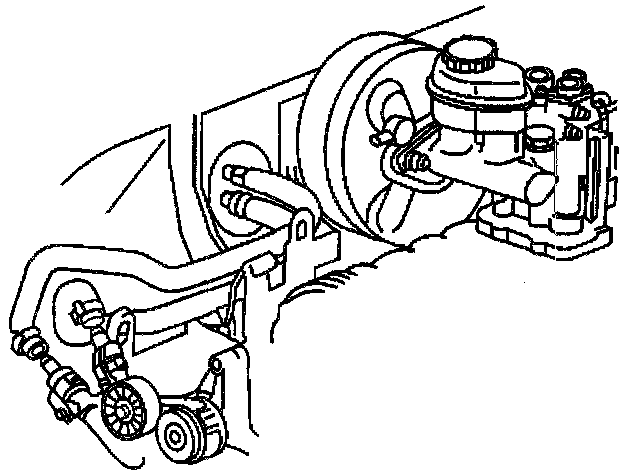

3. Use J 38185 in order to position aside the heater core inlet and/or outlet hose clamp.

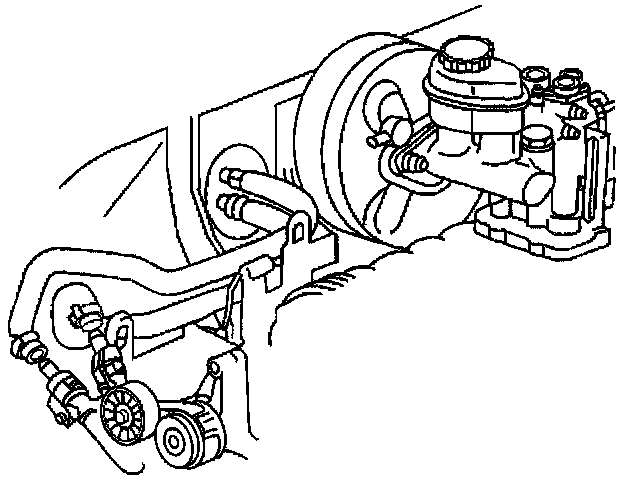

4. Disconnect the heater inlet hose and/or the outlet hose from the heater core.

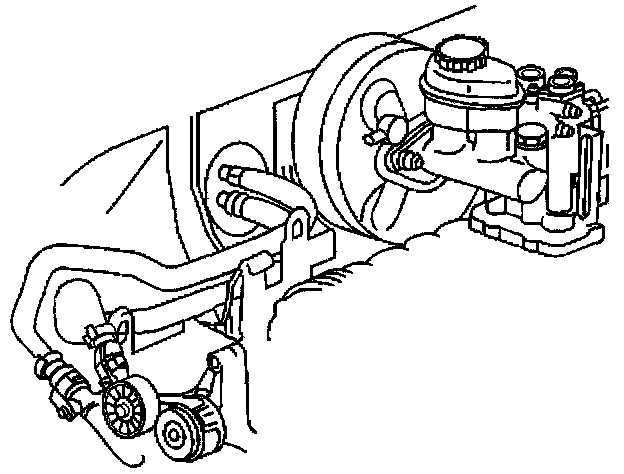

5. Use J 38185 in order to position aside the heater hose inlet and/or outlet clamp.

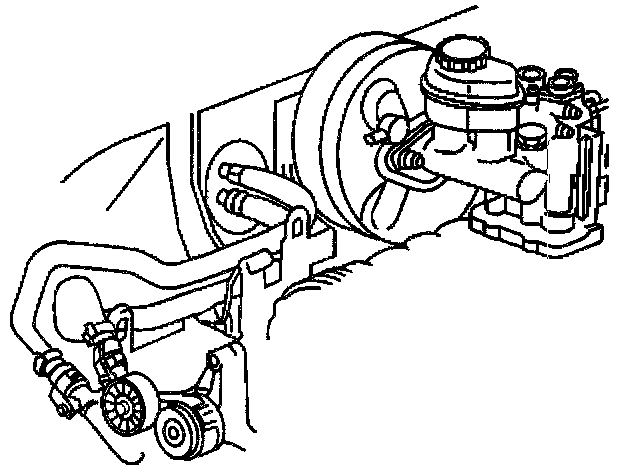

6. Disconnect the heater inlet hose and/or the outlet hose from the pipe adapter.
7. Remove the heater inlet hose and/or the outlet hose.
Installation Procedure
1. Install the heater inlet hose and/or outlet hose.
2. Connect the heater inlet hose and/or the outlet hose to the pipe adapter.
3. Use J 38185 in order to secure the heater hose inlet and/or outlet clamp.
4. Connect the heater inlet hose and/or the outlet hose to the heater core.

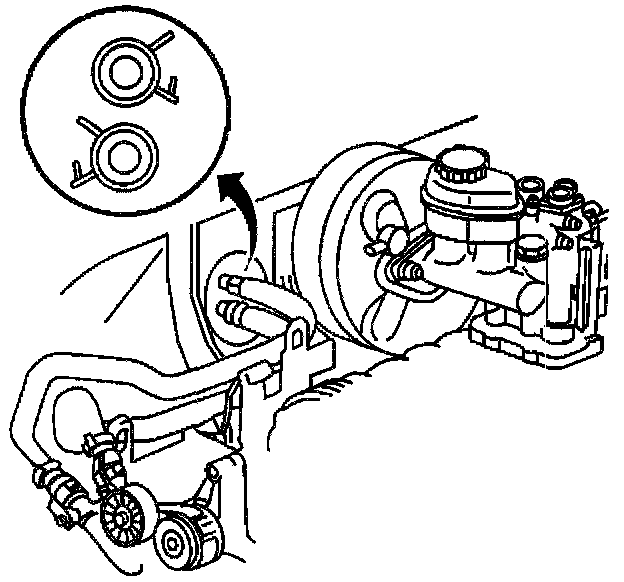

Important: Position heater core hose clamps in the indicated location.
5. Use J 38185 in order to secure the heater core hose inlet and/or outlet clamp.
6. Install the fuel injector sight shield. Refer to Engine Cover Replacement Service and Repair.
7. Refill the cooling system.
8. Inspect the cooling system for leaks.
