Instrument Panel Wiring Harness

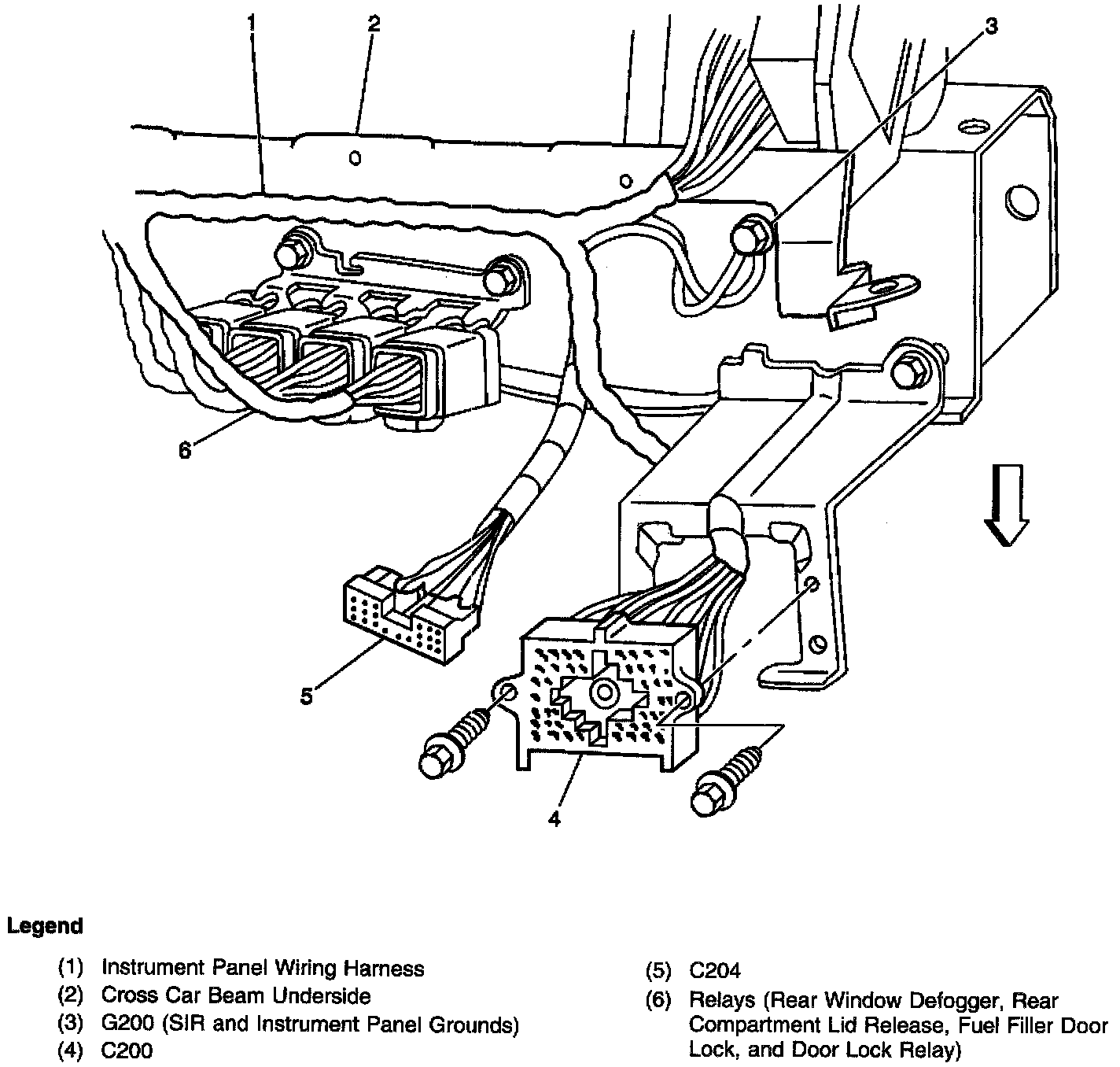

C200, C204 & Relays - Behind RH Side Of I/P:

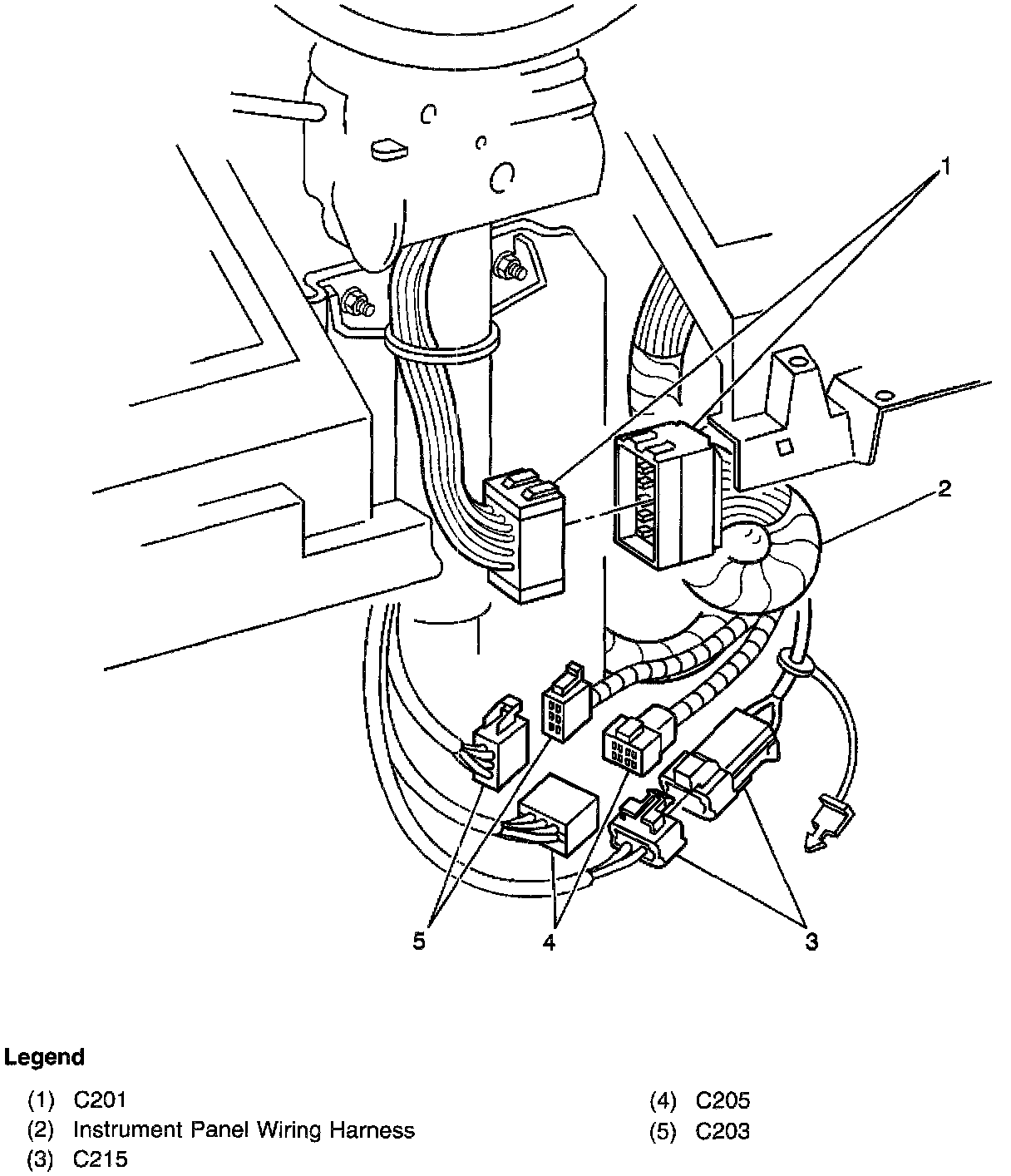

C201, C203, C205 And C215 - Below Steering Column:

Automatic Transaxle Control Position Indicator Position Indicator Bulb, BTSI & Electronic Control Switch:

RCDLR, Cruise Control & Hazard Lamp SW, Ignition SW Instrument Cluster - LH Side Of I/P:

Instrument Panel:

DLC, Fog Lamp SW, I/P Dimmer SW & Rear Compartment Lid And Fuel Filer Door Release SW:

G203 - Behind LH Side Of Instrument Panel:
