Hazard Warning Switch: Service and Repair

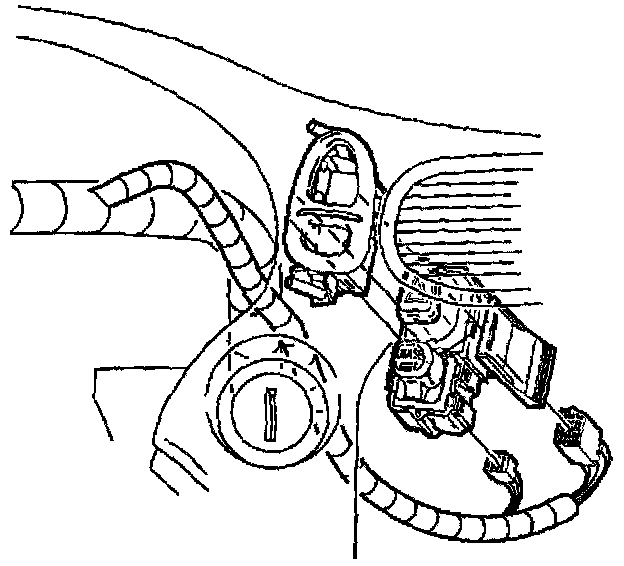

REMOVAL PROCEDUREHazard Warning and Cruise CTL Switch Replacement: Removal Procedure:
1. Remove the center air deflector.
2. Remove the radio control.
3. Squeeze to depress the retainers on the backside of the hazard warning and cruise control switch.
4. Pull to release the hazard warning and cruise control switch from the bezel in the instrument panel (IP) trim pad.
5. Disconnect the electrical connectors from the hazard warning and cruise control switch.
6. Remove the hazard warning and cruise control switch.

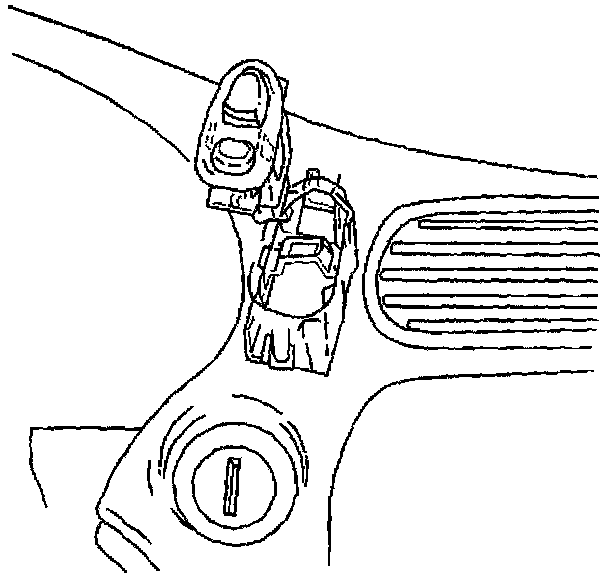

Hazard Warning and Cruise CTL Switch Replacement: Removal Procedure:
7. Using a small flat-bladed tool, release the hazard warning and cruise control switch bezel retainers and remove the bezel from the IP trim pad, if replacing.
INSTALLATION PROCEDURE
Hazard Warning and Cruise CTL Switch Replacement: Installation Procedure:
1. Align the hazard warning and cruise control switch bezel to the IP trim pad, then press into place to secure, if removed.

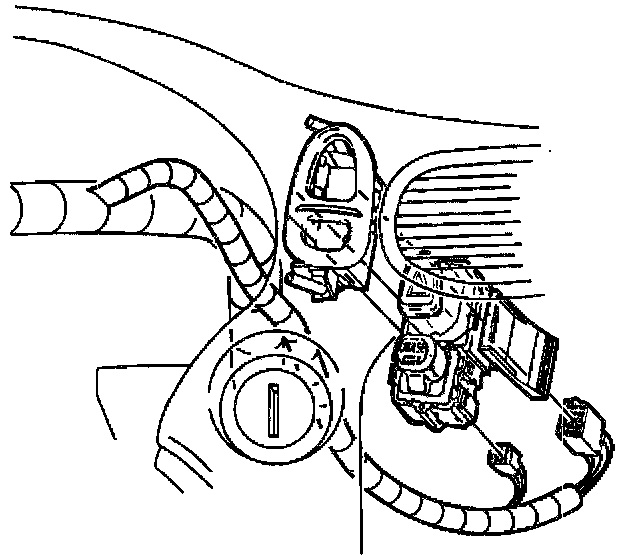

Hazard Warning and Cruise CTL Switch Replacement: Installation Procedure:
2. Connect the electrical connectors to the hazard warning and cruise control switch.
3. Align the hazard warning and cruise control switch to the switch bezel, then press into place to secure.
4. Install the radio control.
5. Install the center air deflector.
