Fog Lamp Replacement - Front
REMOVAL PROCEDUREFog Lamp Replacement: Front - Removal Procedure:
1. Raise and suitably support the vehicle.
2. Disconnect the electrical connector from the front fog lamp assembly.
Fog Lamp Replacement: Front - Removal Procedure:

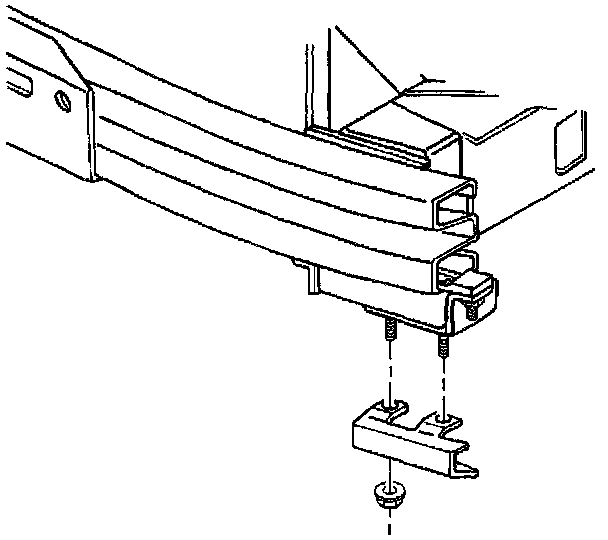

3. Remove the nuts retaining the front bumper fascia lower support to the front fog lamp bracket.
4. Remove the fascia lower support from the vehicle.
Fog Lamp Replacement: Front - Removal Procedure:

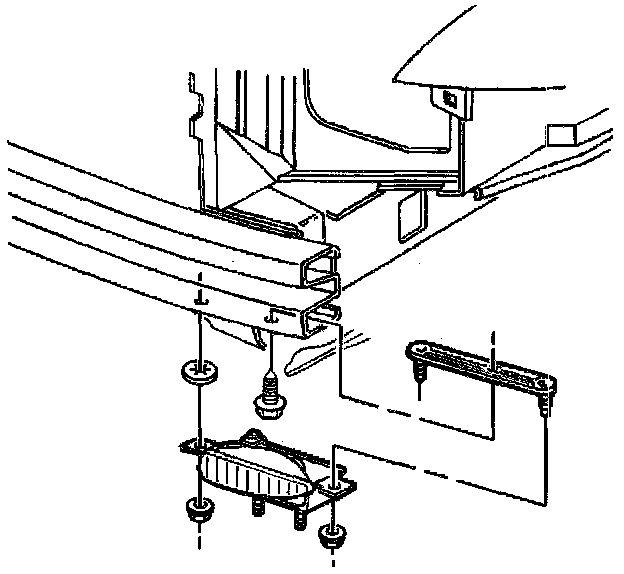

5. Remove the nuts retaining the front fog lamp assembly to the front bumper impact bar.
6. Remove the front fog lamp assembly from the vehicle.
INSTALLATION PROCEDURE
Fog Lamp Replacement: Front - Installation Procedure:
1. Install the front fog lamp assembly into position on the front bumper impact bar.
2. Install the front fog lamp assembly to the front bumper impact bar retaining nuts.
Tighten
Tighten the front fog lamp assembly retaining nuts to 10 N.m (89 lb in).
Fog Lamp Replacement: Front - Installation Procedure:
3. Install the front bumper fascia lower support to the vehicle.
4. Install the front bumper fascia lower support to the front fog lamp bracket retaining nuts.
Tighten
Tighten the front bumper fascia lower support retaining nuts to 10 N.m (89 lb in).
Fog Lamp Replacement: Front - Installation Procedure:
5. Connect the electrical connector to the front fog lamp assembly.
6. Lower the vehicle.
7. Check the front fog lamp aim, It a new front fog lamp assembly was installed, or if service or repairs in the front end area may have disturbed the front fog lamp assembly mounting. Refer to Fog Lamp Aiming Procedure.
