Fog Lamp Bulb Replacement - Front

REMOVAL PROCEDURE

Fog Lamp Bulb Replacement: Front - Removal Procedure:

1. Raise and suitably support the vehicle.

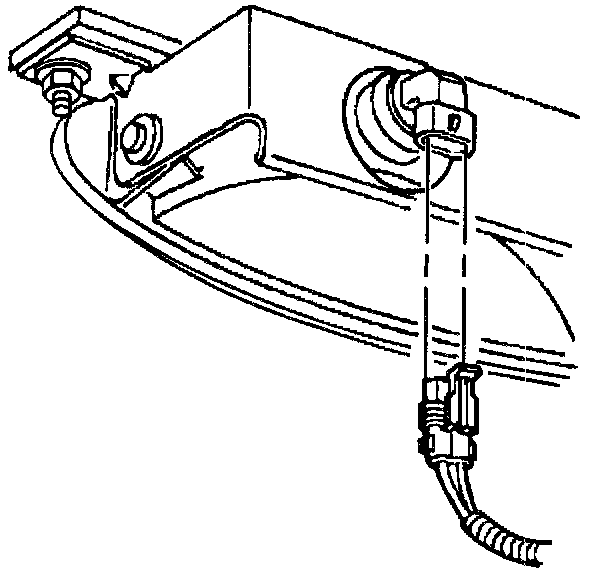

2. Disconnect the electrical connector from the front fog lamp bulb.
3. Rotate the front fog lamp bulb base counterclockwise to release.
4. Carefully remove the fog lamp bulb from the front fog lamp assembly.

INSTALLATION PROCEDURE

Fog Lamp Bulb Replacement: Front - Installation Procedure:

1. Carefully install the fog lamp bulb to the front fog lamp assembly.
2. Rotate the front fog lamp bulb base clockwise to secure.
3. Connect the electrical connector to the front fog lamp bulb.
4. Lower the vehicle.
