Home >> Oldsmobile >> 1998 >> Intrigue V6-3.8L VIN K >> Repair and Diagnosis >> Lighting and Horns >> Diagrams >> Electrical Diagrams >> Exterior Lamp >> Headlamp Switch, DRL Control Module and BCM

Headlamp Switch, DRL Control Module and BCM

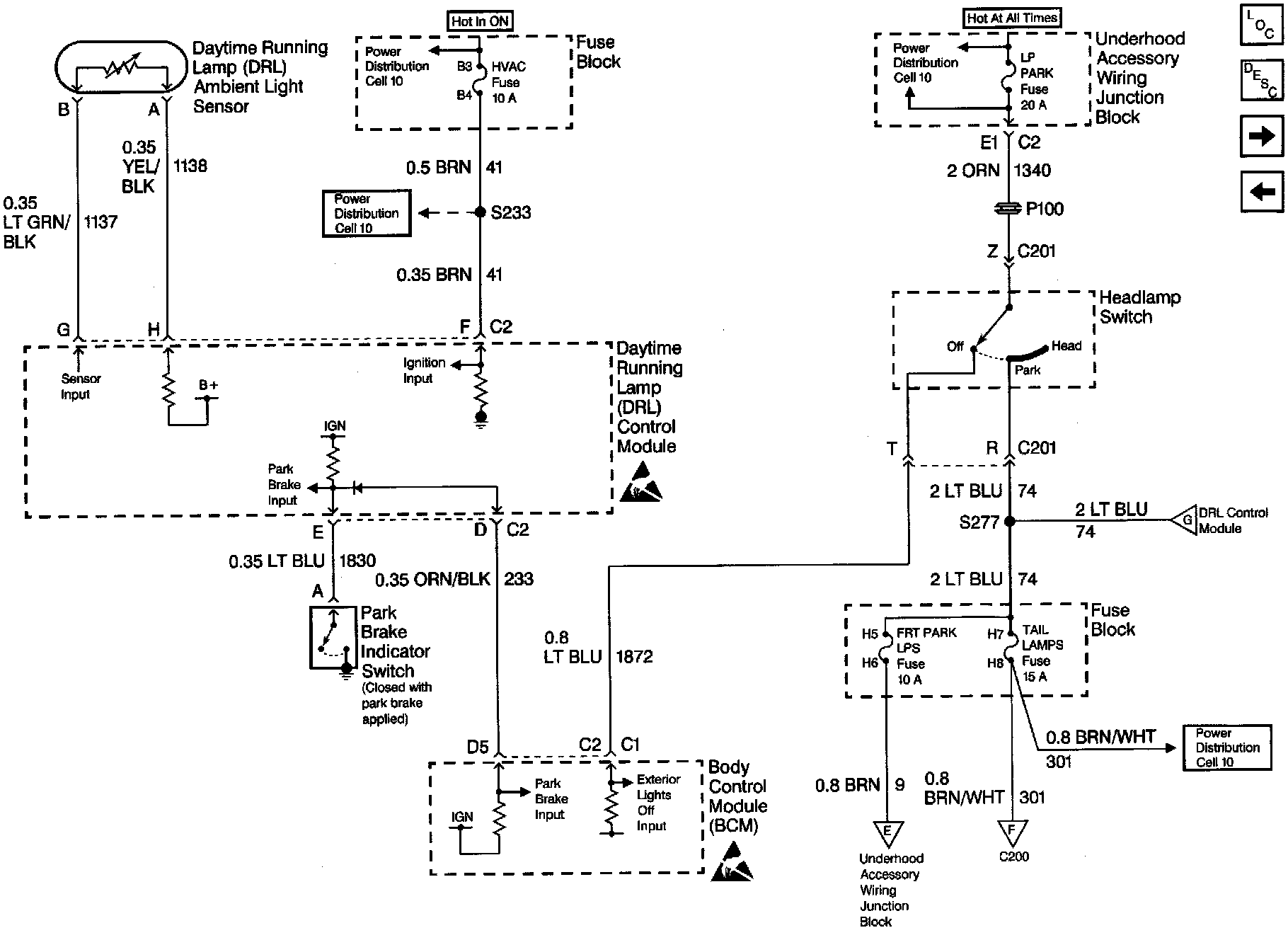

Exterior Lights Schematics: Headlamp Switch, DRL Control Module And BCM:
