Headlamp SW, DRL Control Module, BCM & Ground Distribution
Headlamp SW, DRL Control Module, BCM & Ground Distribution

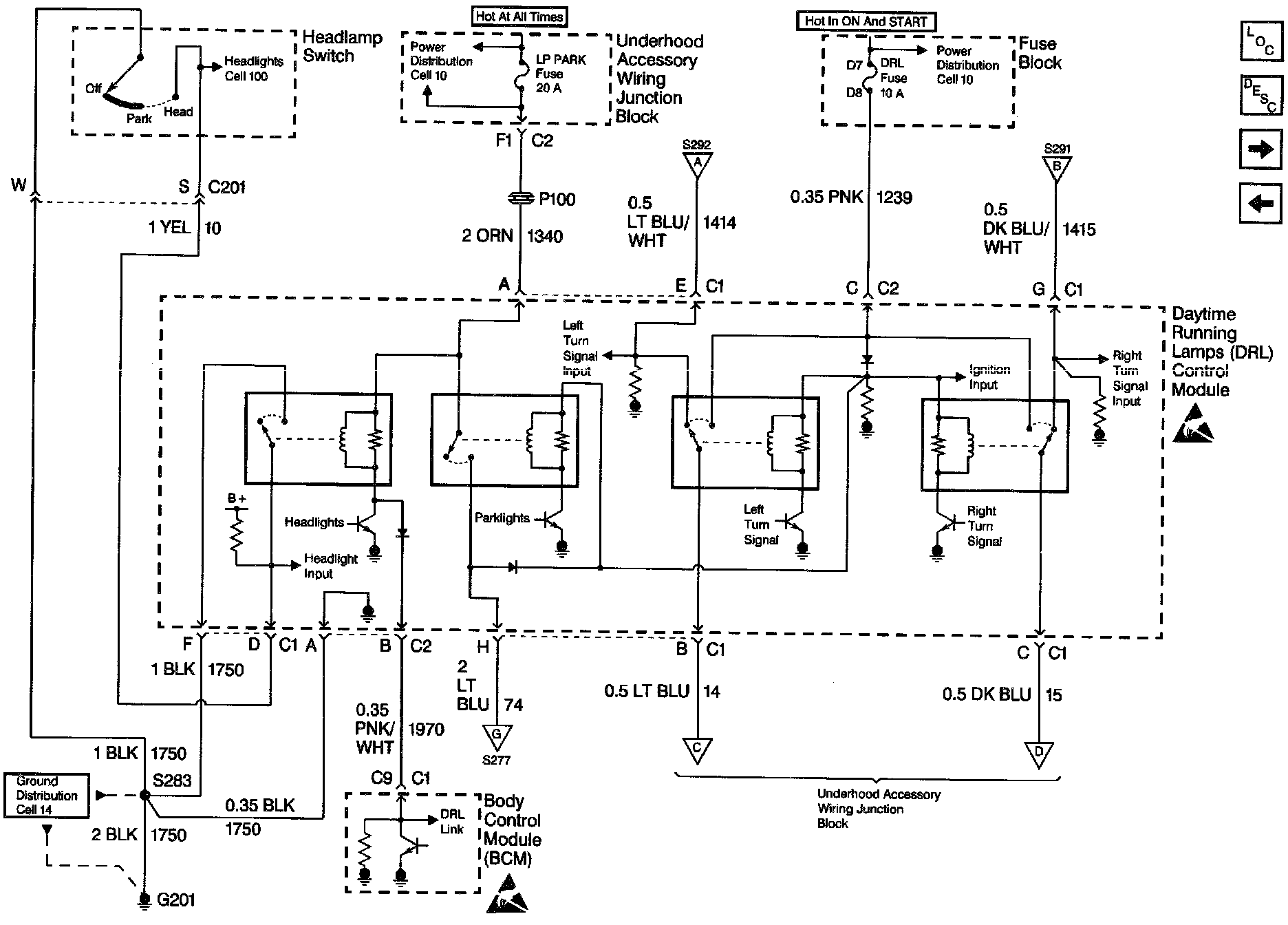

Exterior Lights Schematics: Headlamp SW, DRL Control Module, BCM & Ground Distribution:
