High Mounted Stop Lamp Bulb Replacement - Without Spoiler
REMOVAL PROCEDUREHigh Mounted Stop Lamp Bulb Replacement: Without Spoiler - Removal Procedure:
1. Open the rear compartment.
2. Release the retaining tabs and remove the high-mounted stoplamp vent cover.

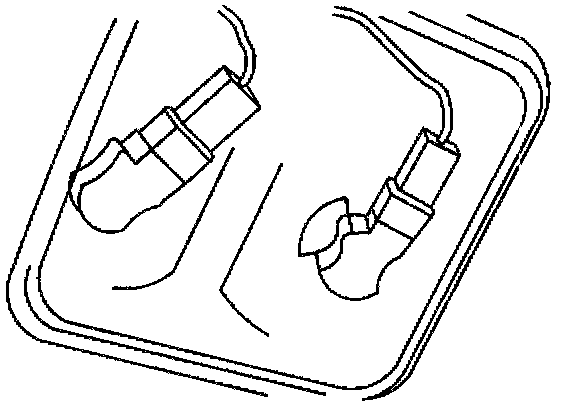

3. Rotate the high-mounted stoplamp socket(s) counterclockwise to release from the high-mounted stoplamp.
4. Remove the bulb(s) from the socket(s).
INSTALLATION PROCEDURE
High Mounted Stop Lamp Bulb Replacement: Without Spoiler - Installation Procedure:
1. Install the bulb(s) to the high-mounted stoplamp socket(s).
2. Install the lamp socket(s) to the high-mounted stoplamp, then rotate clockwise to secure.
3. Install the high-mounted stoplamp vent cover.
4. Close the rear compartment.
