Backup Light Bulb: Service and Repair

REMOVAL PROCEDURE

Backup Lamp Bulb Replacement: Removal Procedure:

1. Open the rear compartment lid.

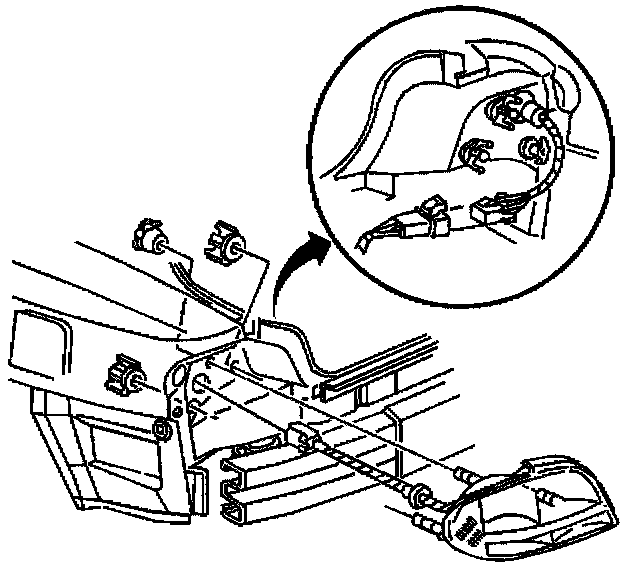

2. Remove the taillamp assembly from the rear body panel.
3. Rotate the backup lamp socket counterclockwise to release from the tail lamp assembly.
4. Remove the bulb from the backup lamp socket.

INSTALLATION PROCEDURE

Backup Lamp Bulb Replacement: Installation Procedure:

1. Install the bulb to the backup lamp socket.
2. Install the backup lamp socket to the taillamp assembly then rotate the lamp socket clockwise to secure.
3. Install the taillamp assembly to the rear body panel.
4. Close the rear compartment lid.
