Outlet Pipe Adapter
Tools RequiredJ 38185 Hose Clamp Pliers
Removal Procedure
1. Drain the cooling system.
2. Remove the fuel injector sight shield. Refer to Engine Cover Replacement Service and Repair.

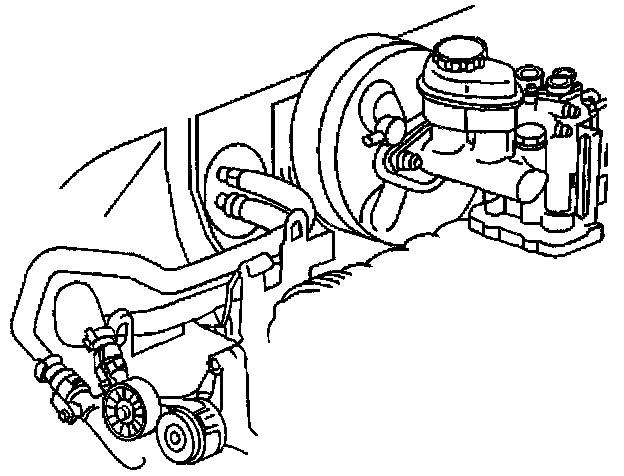

3. Remove the heater outlet hose from the pipe adapter.

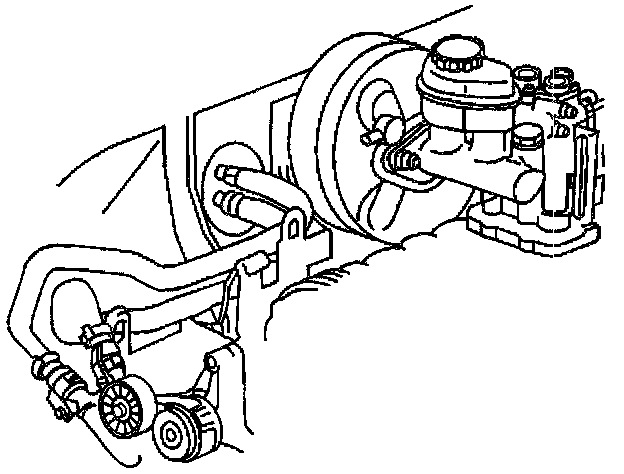

4. Use J 38185 in order to position aside the heater hose clamp.

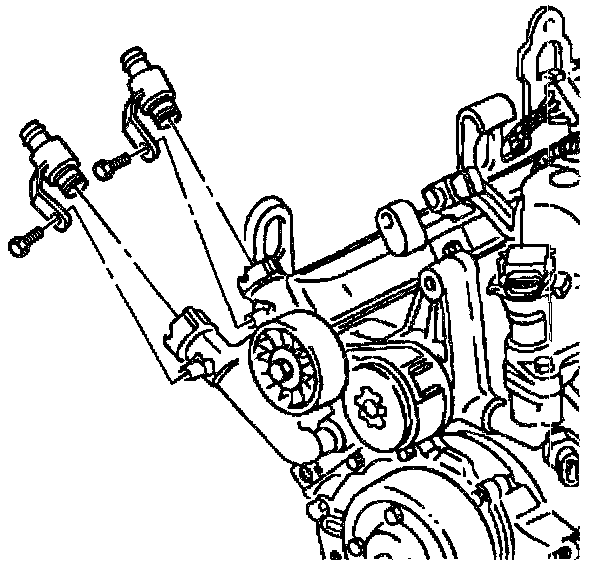

5. Remove the pipe adapter mounting bolt.
6. Remove the pipe adapter.
Installation Procedure
1. Lubricate the O-ring.
2. Install the pipe adapter.
3. Install the pipe adapter mounting bolt.
Tighten
Tighten the pipe adapter mounting bolt to 6 N.m (53 lb in).
4. Install the heater outlet hose from the pipe adapter.
5. Use J 38185 in order to secure the heater core hose clamp.
6. Install the fuel injector sight shield. Refer to Engine Cover Replacement Service and Repair.
7. Refill the cooling system.
8. Inspect the cooling system for leaks.
