Auxiliary

Removal Procedure

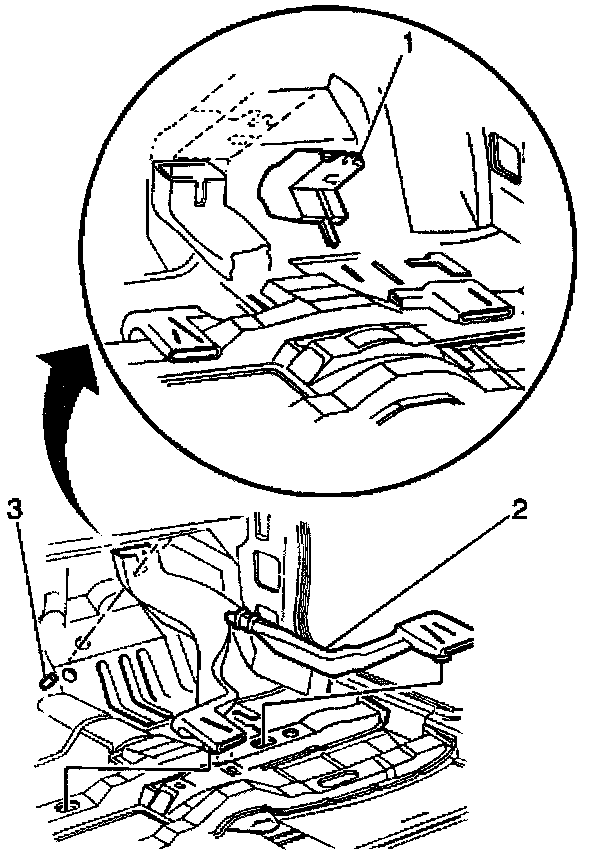

1. Position the front half of the carpet aside.
2. Remove the lower heater duct (1).
3. Unsnap the rear floor air outlet duct (2) from the studs and the holes in the floor reinforcement.
4. Remove the rear floor air outlet duct.

Installation Procedure

1. Install the rear floor air outlet duct.
Snap the rear floor air outlet duct (2) onto the studs and the holes in the floor reinforcement.
2. Install the lower heat duct (1).
3. Install the front carpet into position.
