Crankshaft Front Oil Seal Installation

^ Tools Required
- J 35354 Seal Installer

1. Coat the inside diameter of the crankshaft front oil seal with lubricant GM P/N 10522497 or equivalent.

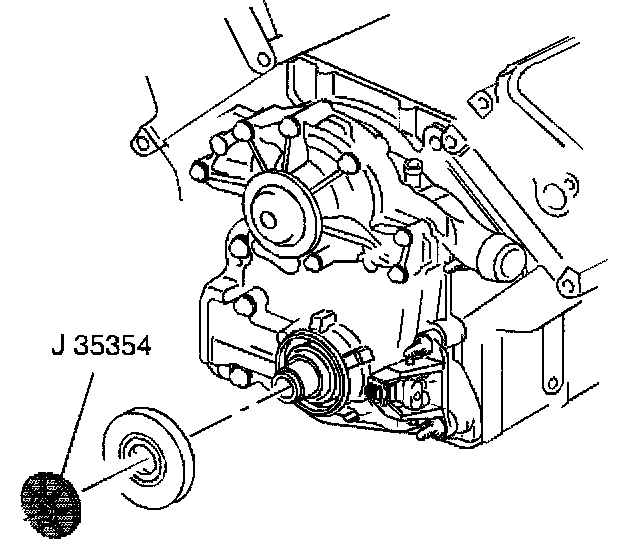

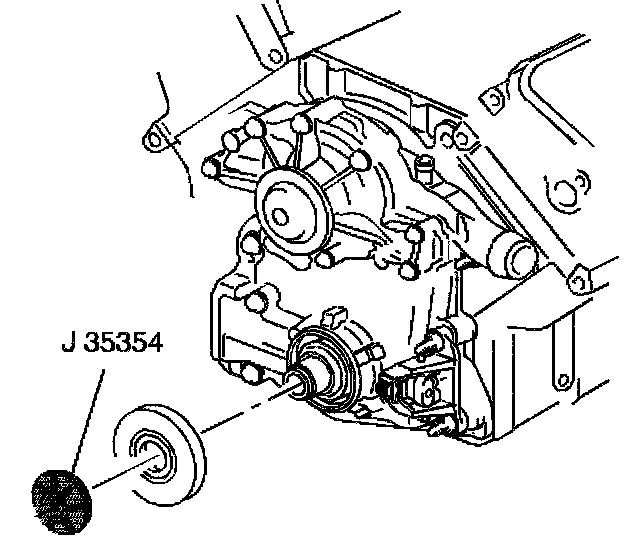

2. Use J 35354 and a soft faced hammer to install the crankshaft front oil seal.
3. Remove J 35354.
