Engine Mount Strut Bracket Replacement (Right Side, Engine)

REMOVAL PROCEDURE
1. Disconnect the battery ground (negative) cable.

CAUTION: Refer to Battery Disconnect Caution in Service Precautions.

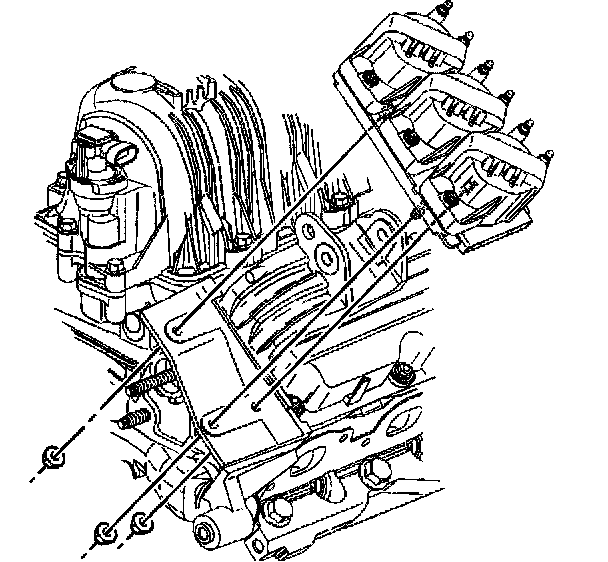

2. Remove the ignition control module.
3. Remove the generator support brace.
4. Remove the ground harness connection.

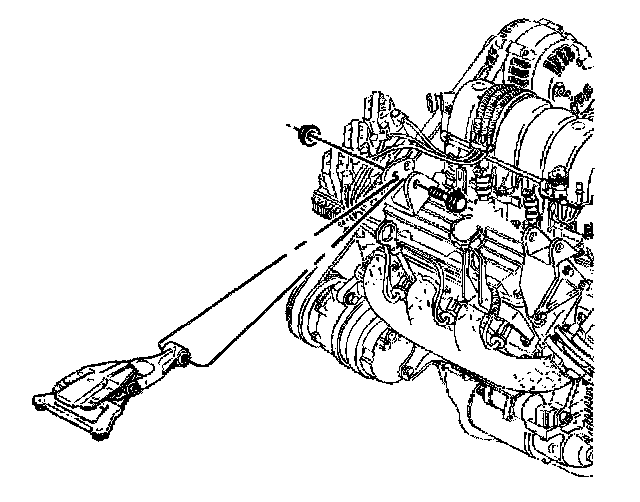

5. Remove the right engine mount strut at the right engine mount strut bracket.

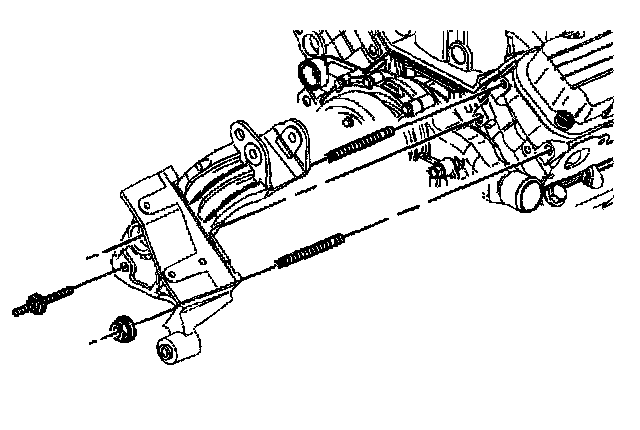

6. Remove the right engine mount strut bracket nut, stud, and bolt.
7. Remove the right engine mount strut bracket from the cylinder head.

INSTALLATION PROCEDURE





1. Install the right engine mount strut bracket to the cylinder head.

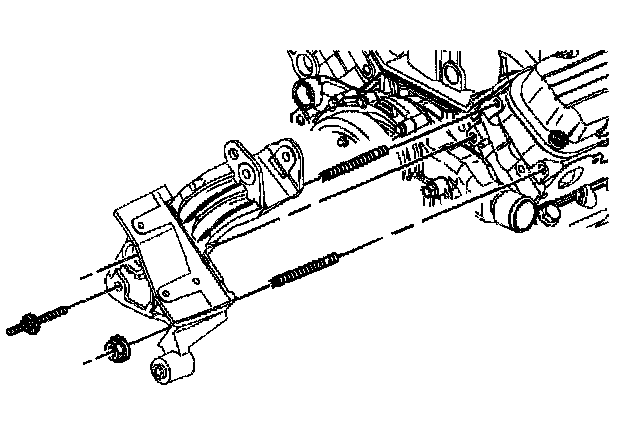

2. Install the right engine mount strut bracket nut, stud, and bolt.
^ Tighten the right engine mount strut bracket nut, stud, and bolt to 50 Nm (37 ft. lbs.).

NOTICE: Refer to Fastener Notice in Service Precautions.

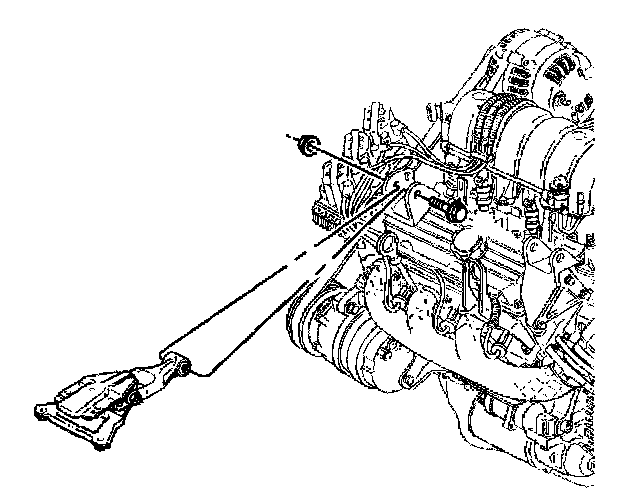

3. Install the right engine mount strut to the right engine mount strut bracket.
4. Install the ground harness connection.
5. Install the generator support brace.

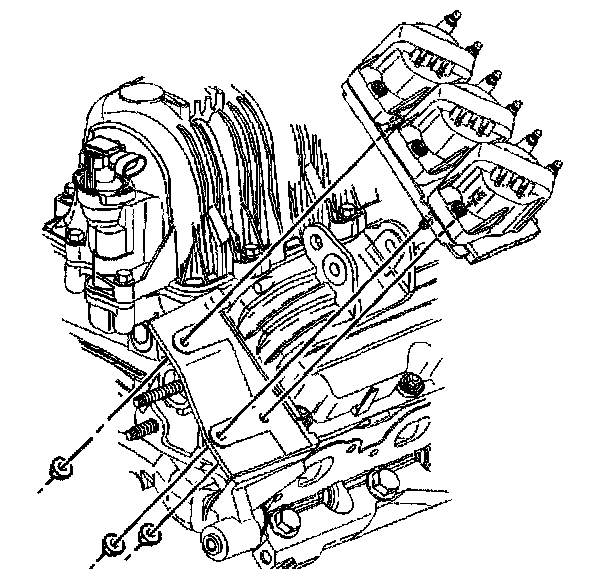

6. Install the ignition control module.
7. Connect the battery ground (negative) cable.
