Engine Mount Strut Bracket Replacement (Left Side, Engine)

REMOVAL PROCEDURE
1. Drain the engine coolant from the cooling system.

CAUTION: Refer to Battery Disconnect Caution in Service Precautions.

2. Remove the exhaust crossover pipe for access.
3. Remove the engine coolant temperature sensor.
4. Remove the radiator support clamp from the engine mount strut bolt.

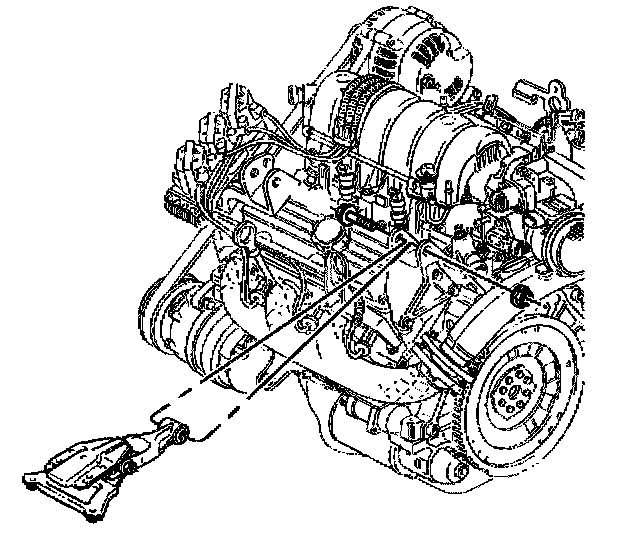

5. Remove the engine mount strut at the left engine mount strut bracket.

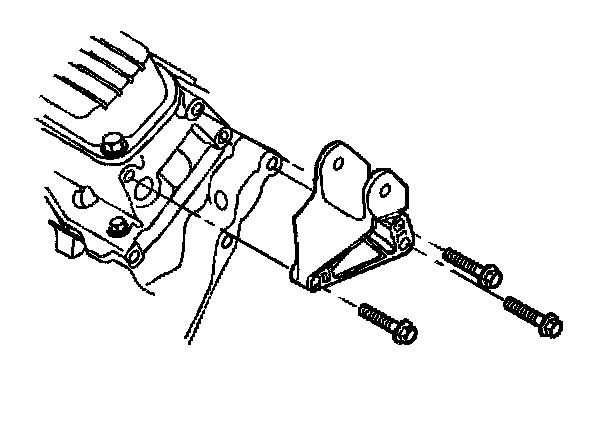

6. Remove the engine mount strut bracket bolts.
7. Remove the engine mount strut bracket.

INSTALLATION PROCEDURE

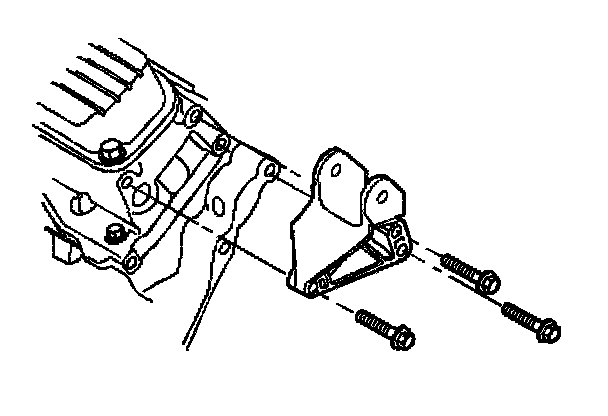

1. Install the engine mount strut bracket to the head.
2. Install the engine mount strut bracket bolts.
^ Tighten the engine mount strut bracket bolts to 50 Nm (37 ft. lbs.).

NOTICE: Refer to Fastener Notice in Service Precautions.

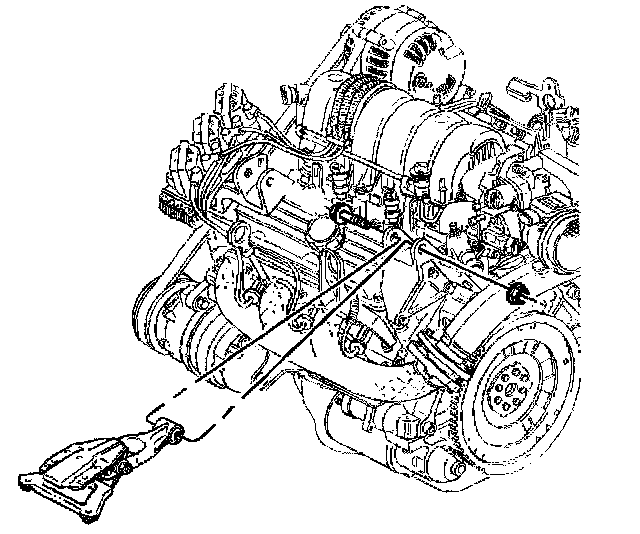

3. Install the engine mount strut to the left engine mount strut bracket.
4. Install the radiator support clamp to the engine mount strut bolt.
5. Install the engine coolant temperature sensor.
6. Install the exhaust crossover pipe.
7. Fill the cooling system with engine coolant.
