Radiator Air Baffle Assemblies and Deflectors (Deflector)

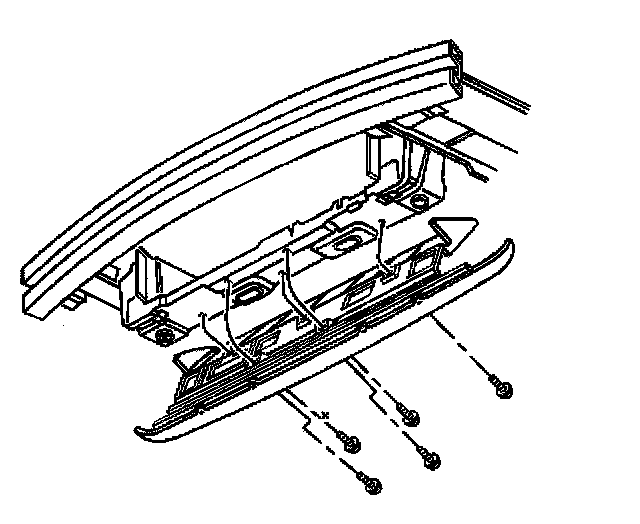

REMOVAL PROCEDURE
1. Raise and suitably support the vehicle.





2. Remove the radiator lower air deflector mounting bolts.
3. Remove the radiator lower air deflector.

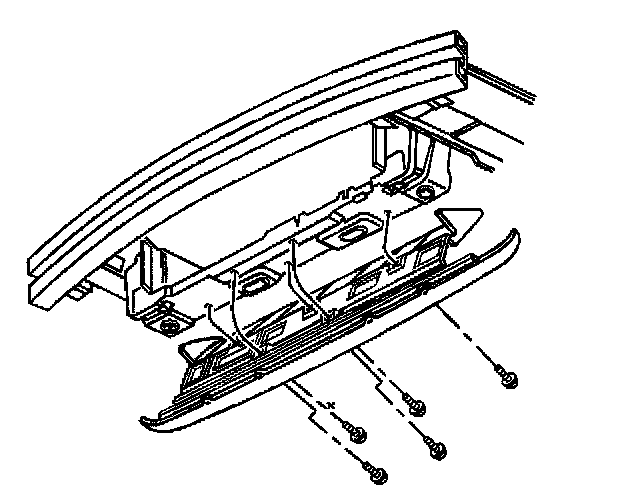

INSTALLATION PROCEDURE
1. Install the radiator lower air deflector.





2. Install the radiator lower air deflector mounting bolts.
^ Tighten the radiator lower air deflector mounting bolts to 5 Nm (44 inch lbs.)

NOTICE: Refer to Fastener Notice in Service Precautions.

3. Lower the vehicle.
